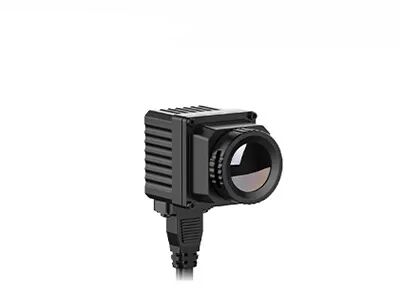

N-Driver Vehicle Mounted Thermal Camera Uncooled 384x288 / 17μM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 384x288/17μm | NETD | ＜50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Field Of View | 37°x28° |
| High Light | Vehicle Mounted Thermal Camera 17uM,Uncooled Vehicle Mounted Thermal Camera,Uncooled Thermal Camera 384x288 |
||
Product Description
Brief Introduction
N-Driver Vehicle Mounted Thermal Camera Uncooled 384x288 / 17μM
Product Description
N-Driver384 with 384x288@17μm infrared detector is one of the N-Driver series vehicle-mounted infrared modules developed by Global Sensor Technology (GST). It can be used to enhance driver's visual capability.
With the featured razor-sharp live imaging, extremely wide viewing range, incredible durability in diverse harsh environments, instant installation on any vehicles and high affordability for any limited budgets, N-Driver384 infrared camera module is absolutely the perfect choice of driving assistant vision system.
Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.
Main Features
- Clear Thermal Imaging in Night Vision
- A Great Distance of View
- All-weather Application
- Easy Integration
- High Reliability & Stability
Product Specifications
| Model | N-Driver 384 |
| IR Detector Performance | |
| Resolution | 384x288 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | <50mk |
| Image Display Performance | |
| Focal Length | 9.7mm |
| Field of View | 37°×28° |
| Video Output Format | CVBS |
| Output Image Frame Rate & Resolution | PAL 768x576@25Hz |
| System Features | |
| Start-up Time | ≤8s (Room Temperature) |
| Heater | When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself When the Window Temperature is Higher than 7°C±2°C, Turn off the Heating by Itself |
| Compensation Algorithm | Automatic Shutter Compensation |
| Image Algorithm | Automatic Brightness Contrast/Image Enhancement |
| Communication Interface | RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps |
| Pedestrian/Vehicle Detection | / |
| Electrical Features | |
| Supply Voltage | DC9V~32V |
| Overall Power Consumption | ≤3.5W@24V Power Supply, Window Heating is off ≤9W@24V Power Supply, Window Heating is on |
| Operating Range | |
| Observe Range | Person: 1.8m×0.5m ≥150m Car: 2.3m×2.3m ≥300m |
| Detect Range | / |
| External Cable Connection | |
| Cable Length | 4m |
| Standard External Interface | Power Supply: DC5.5*2.1 Female Connector Video: RCA Lotus Male Connector Serial Port: SM 2.54-3P Male Connector (Pin) |
| Physical Characteristics | |
| Dimension (mm) | 40.0x36.0x58.0 (Without Cable) |
| Weight | 150g±3g (Without Cable) |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +85°C |
| Storage Temperature | -45°C ~ +90°C |
| Environmental Test | Salt Spray: ISO16750-4; Harsh Level IV Industrial Solvent: GB/T28046.5-2013 |
| Reliability Test | Vibration: ISO16750-3, Grade A Flame Retardant: GB8410, Grade B Stone Impact: ISO16750-3, Grade A ESD: Contact Discharge ±8KV, Air Discharge ±15KV |
| Package | Sealed Case IP67 |
| Certification | |
| EMC | EMC Test Certification (ISO10605, ISO11452-4, ISO11452-2, ISO7637-2) |
Industrial Applications
The N-driver 384 automotive thermal imaging camera is widely used in Advanced Driver Assistance System.
Customer Reviews
FAQs
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
