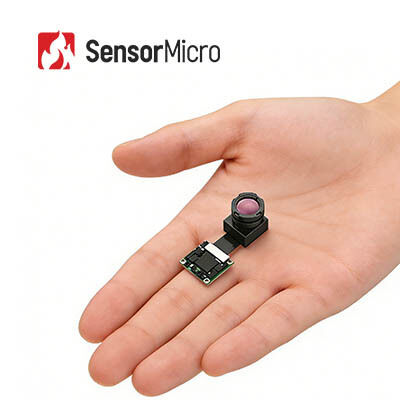

Uncooled VOx Mini Infrared Thermal Camera Module with 256x192 Resolution and 12μm Pixel Size

  • Uncooled VOx Mini Infrared Thermal Camera Module with 256x192 Resolution and 12μm Pixel Size
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Mini212G2
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 256x192/12μm NETD ≤50mK
Spectral Range 8~14μm Frame Rate Thermography: 25Hz, Imaging: 50Hz
Analog Video Interface CVBS (PAL/NTSC) Operating Voltage 3.3V±0.1V
Highlight

Mini Vehicle Mounted Thermal Camera

,

Vehicle Mounted Thermal Camera 384x288
Leave a Message
Product Description
Uncooled VOx Mini Infrared Thermal Camera Module 256x192/12μm
The ultra-compact Mini212G2 infrared camera module adopts a 256×192/12μm uncooled infrared detector with wafer-level packaging. Tailored for booming emerging sectors such as AIoT, Machine Vision, Industrial Vision, Security Monitoring and Night Observation, it perfectly accommodates their diversified and evolving application demands.
Boasting a tiny form factor and premium infrared detection performance, it acts as a core sensing unit to overcome the drawbacks of conventional imaging solutions. It delivers accurate, stable and efficient performance in multiple application scenarios, while satisfying the cost-efficiency and easy integration demands of emerging industrial applications.
Main Features
  • Miniature Module with Direct Thermal Imaging Output
    • Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
    • Ultra-compact structural design: only 17×17mm (PCBA) in size, weighing as low as 4g — ideal for space-constrained applications
    • Integrated ISP processing board and next-gen image algorithms deliver clear thermal images directly, ensuring strong versatility
  • Precise Detection, Flexible Configuration
    • High-precision temperature measurement with accuracy up to ±2℃; supports spot, area, and full-frame measurement
    • Multiple field-of-view lens options available to meet various observation requirements
  • Rich Interfaces for Easy Integration
    • Offers USB2.0 / MIPI / DVP / BT.656 / LVDS and other digital video output interfaces
    • Fully compatible with industry-standard interfaces
Product Specifications
Model Mini212G2
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate Thermography: 25Hz, Imaging: 50Hz
Focus Mode Focus Free
Lens (HFOV/FL) 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm
Weight (g) 7.1 | 6.4 | 4 | 6.8
PCBA Size (mm) 17×17
Digital Video Interface USB2.0 / MIPI / DVP / BT.656 / LVDS
Analog Video Interface CVBS (PAL/NTSC)
Operating Voltage 3.3V±0.1V
Typical Power Consumption 330mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -40℃~+70℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification RoHS 2.0 / Reach
Industrial Applications
This product is positioned for fields such as AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation.
  • In the AIoT field, it is perfectly suitable for integration into compact AIoT devices such as smart home appliances, wearable devices, and intelligent environmental monitors.
  • In the industrial vision sector, it can be used for real-time monitoring of industrial equipment, laser processing and welding scenarios, semiconductor detection, etc.
  • For security monitoring applications, it can detect illegal intruders and trigger real-time alarms.
Our Advantages
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available — both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery — three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
Our thermal camera modules are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
