400x300 17μm Infrared Thermal Camera Module with Temperature Measurement
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||400x300 / 17μm||NETD||＜30mK|
400x300 Infrared Thermal Camera Module,
77g Infrared Thermal Camera Module

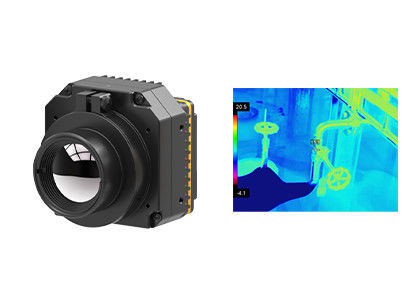

LWIR VOx 400x300 / 17μm Uncooled Thermal Imaging Camera Core for Building Inspection
PLUG417R thermal camera core uses the 400x300 / 17μm uncooled LWIR infrared detctor with an optional temperature measurement function. This infrared thermal module can not only measures the value of temperature around you but also display the thermal imaging figure. So it must be your best choice to monitor the temperature change.
Global Sensor Technology is an OEM infrared detectors & thermal imaging camera module manufacturer. We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Operating Temperature Range||-10°C~50°C|
|Temperature Range||-20°C~150°C, 100°C~550°C|
|Temperature Accuracy||±2°C or ±2% (Take the Maximum Value)|
|SDK||ARM/Windows/Linux SDK, Full Screen Thermography|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm|
The PLUG417R uncooled IR sensor module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
1. How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
2. What's the advantage of uncooled vox microbolometer?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
