HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly

I'm Online Chat Now

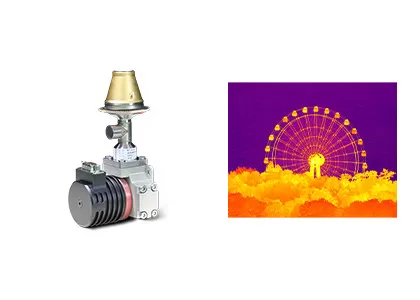

HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly

HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly
HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly

Large Image :  HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: ≤20mK (F2/F4)
Spectral Range: 3.7~4.8μm MW Size: 149x58.5x71mm
High Light:

HgCdTe Cooled Ir Detectors

,

1280x1024 Cooled Ir Detectors

,

GST Cooled Ir Detectors

About C1212M Cooled Infrared Detector



HgCdTe Cooled MWIR 1280x1024 12μm Infrared Detector Integrated Dewar Cooler Assembly



Product Description



The C1212M Integrated Dewar Cooler Assembly provides all the performance of high resolution and long range detection in a compact and low power package. It utilizes Global Sensor Technology’s HgCdTe (MCT) cooled infrared detector technology to deliver high sensitivity.



Measuring 149x58.5x71 in dimension and weighing less than 600g in weight, the C1212M is designed to address the most demanding applications. It’s compact size and low power consumption makes it the perfect choice for thermal imaging applications such as handheld thermal imagers, payloads, etc that requires superior performance and high resolution in a low SWaP package solution.



 Main Features


- Resolution: 1280x1024
- Pixel Pitch: 12μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly 0



Our Advantages


HgCdTe Cooled IR Detector MWIR 1280x1024 12μm Integrated Dewar Cooler Assembly 1


FAQs



1.What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
