Home ProductsThermal Camera Core

LWIR 640X512 / 12μm Thermal Imaging Core for Clear Imaging & AIoT Application

I'm Online Chat Now

LWIR 640X512 / 12μm Thermal Imaging Core for Clear Imaging & AIoT Application

LWIR 640X512 / 12μm Thermal Imaging Core for Clear Imaging & AIoT Application
LWIR 640X512 / 12μm Thermal Imaging Core for Clear Imaging & AIoT Application

Large Image :  LWIR 640X512 / 12μm Thermal Imaging Core for Clear Imaging & AIoT Application

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
Resolution: 640x512 / 12μm NETD: <40mK
Spectral Range: 8~14μm Size: 25.4x25.4x14.1mm
High Light:

12μM Thermal Imaging Core

,

LWIR Thermal Imaging Core

,

AIoT Thermal Imaging Core

COIN612 LWIR Camera Module



LWIR 640X512 / 12μm Uncooled Thermal Camera Core for Clear Imaging & AIoT Application



Product Description

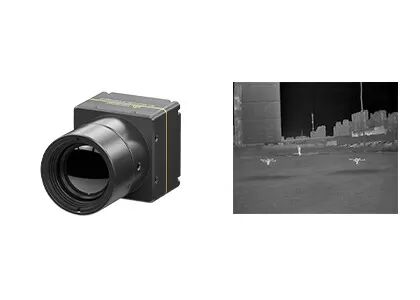

COIN612/R is one of the COIN series infrared thermal camera modules developed by Global Sensor Technology (GST). It integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector, high performance signal processing circuit and image processing algorithm.



The COIN612/R infrared camera core presents sharp and detailed thermal images with less than 40 mK NETD and a resolution of 640x512 IR pixels. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.



The COIN612/R infrared module supports DVP/LVDS multi-mode image output interfaces, RAW/YUV image data output and serial port control. Due to its light weight, compact size, low power consumption and multiple interface options, COIN612 thermal camera module enables easy configuration and integration into numerous infrared products, such as thermal imagers and infrared thermographic cameras.



Main Features



- Mini Size: 25.4x25.4x14.1mm

- Light Weight

- NETD<40mk

- High Quality Image

- Low Power Consumption

- Rapid Development & Integration



Product Specifications



Model COIN612/R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.75W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 25.4x25.4x14.1 (With Shutter)
Weight Module: 13g±0.5g (With Shutter)
Module+8.8mm Lens: 22.4g±0.5g
Module+13mm Lens: 41g±0.5g
Module+19mm Lens: 43.9g±0.5g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 8.8mm/13mm/19mm



Industrial Applications



The COIN612/R uncooled FPA LWIR thermal camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.
