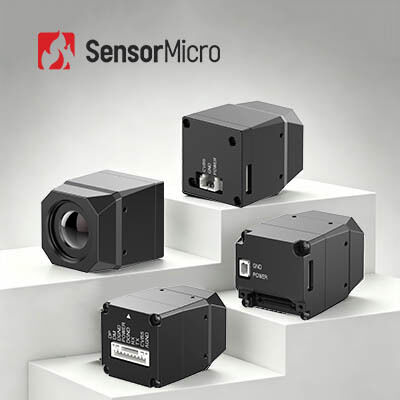

Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution Multiple Lenses and Low Power Consumption

  • Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution Multiple Lenses and Low Power Consumption
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Uncooled Infrared Module Steady Power Consumption ≤680mW
NETD ≤30mK Frame Rate 25Hz/30Hz/50Hz
Resolution 640x512 / 12μm Weight 30.3±2g
Highlight

Uncooled Thermal Security Camera Module

,

Uncooled Infrared Thermal Security Camera Module

,

Multiple Lenses Thermal Security Camera Module
Leave a Message
Product Description
Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses
Product Overview
MICO612 thermal module is specially designed for security and surveillance monitoring cameras. By integrating this module, security cameras can sense an object's heat radiation and capture images 24/7, regardless of environmental factors such as darkness, low light, strong backlight, etc.
The integration of our uncooled infrared camera core with 640x512/12μm into security monitoring systems offers a multitude of benefits. It enables the identification of potential threats in complete darkness, provides early detection of abnormal temperature patterns, and enhances situational awareness in various environments. Whether securing critical infrastructure, monitoring large-scale industrial facilities, or maintaining public safety, our solution delivers unmatched performance and reliability.
Main Features
Mainstream Compatibility, Cost-Effective
  • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
  • Integrated with a dedicated ASIC chip for high energy efficiency
Optimized SWaP Design
  • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
  • Weighing just 30.3±2g
  • Low power consumption: 680mW
Easy Development & Quick Integration
  • Native analog video or digital video output, supporting both CVBS/USB/MIPI standards—no additional development required
  • Easy mounting with minimal structural design effort
Product Specifications
Model MICO612
IR Detector Sensitive Material: VOx
Resolution: 640×512
Pixel Size: 12µm
NETD: ≤30mK/F1.0/25℃
Spectral Response: 8~14μm
Optical Lens Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0
FOV: 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V)
Type: Fixed Focus Athermal
Detection Range (8 pixels) 99m (5'11" tall person)
360m (4m×3m vehicle)
First lens sealing/coating IP67
Image Processing Analog Video: PAL(default) / NTSC
Digital Video: USB / MIPI
Frame Rate: 25Hz/30Hz/50Hz
Start-up Time: ≤6s
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Pseudo Color 11 types - customizable
Electrical Interface Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface: CVBS | USB | MIPI
Power Supply: DC: 5V~24V
Steady Power Consumption ≤680mW@5V, 23±3℃
Size 22.2mm×22.2mm×27.2mm (L×W×H)
Weight 30.3±2g
Operating Temperature -40℃~+70℃
Storage Temperature -45℃～+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification RoHS2.0/Reach
Industrial Applications
The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Our Core Strengths
Stable Supply
Boasting a stable and reliable supply chain across our full ecosystem, we can respond quickly to market demands.
Sustaining Innovation
With expertise in detector manufacturing and experience in supporting system integration, we gain deep insight into performance requirements, continuously optimize designs, and create a virtuous cycle: Product Application → Technical Feedback → Product Upgrade.
Frequently Asked Questions
1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and price is also a factor that needs to be considered. If image quality is not critical, you can choose infrared detectors with lower resolution such as 120x90, 256x192, or 400x300. If you need very clear images for special purposes such as remote monitoring, you can choose high resolution infrared detectors of 1280x1024.
2. How to select right pseudo color for thermal imaging?
  • The gray white palette is more suitable for targets with small temperature differences
  • The red and blue palette is more suitable for scenes where problem points need to be identified
  • The iron red palette is the standard color palette for the power industry
Note: Regardless of which palette you choose, the thermal temperature measurement will not change at all.
3. How to choose a suitable infrared thermal camera lens?
  • Standard lens can meet normal targets with appropriate distance
  • Telephoto lens is suitable for relatively small targets that need to be viewed from long distances
  • Wide angle lens is better for seeing more detail of objects at close distances
  • Macro lens is for viewing very tiny targets at close distances, such as chip circuits
