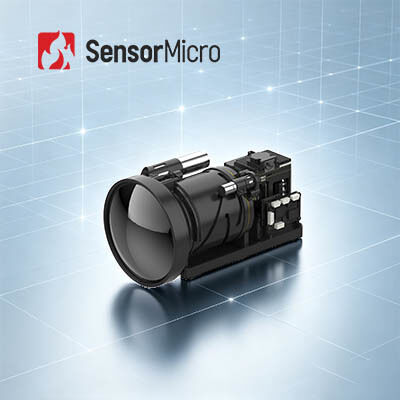

640x512 Resolution 15μm Pixel Size HOT MWIR Cooled Module for Thermal Security Camera Integration

  • 640x512 Resolution 15μm Pixel Size HOT MWIR Cooled Module for Thermal Security Camera Integration
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615HMG
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm IR Detector NETD (23℃) 20mK(F4)
Spectral Range 3.7~4.8μm Size 71×55×84mm
Power Supply 12V±1V Steady Power Consumption (23℃) ≤7W
Highlight

640x512 MWIR Cooled Module

,

MCT MWIR Cooled Module
Leave a Message
Product Description
640x512 / 15μm HOT MWIR Cooled Module for Fast Integration into Thermal Security Camera
Product Overview

The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables high-quality stable imaging while delivering compact size, lightweight design, and low power consumption for optimized SWaP performance.

With broad compatibility across multiple digital video interfaces and easy secondary development, this module is suitable for handheld devices, mobile payloads, and long-duration monitoring applications requiring compact size, energy efficiency, and long-range detection capabilities.

Main Features
  • Mainstream FPA, Clear Imaging - Developed with 640×512/15μm large-format HOT MWIR cooled infrared detector for excellent versatility
  • Advanced Image Processing - Equipped with next-generation algorithms including DRC, 2D/3D noise reduction, and edge enhancement for clearer images
  • HOT Technology for SWaP Optimization - Supports high-temperature operation up to 150K with cooling time ≤ 3min30s
  • Compact Design - Size: 71×55×84 mm, weight: 350g, power consumption: 7W
  • Rich Interface Support - CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
  • Flexible Output - RAW/YUV image output options
Technical Specifications
Model GAVIN GC615HMG HOT MWIR Cooled Infrared Camera Core
Performance
Resolution 640×512
Pixel Size 15μm
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 20mK(F4)
Image Processing
Frame Rate 50Hz (F4) / 30Hz (F5.5)
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 12V±1V
Steady Power Consumption(23℃) ≤7W
Cooling Time(23℃) ≤3min30s
Size(mm) 71×55×84
Weight(g) ≤350
Operating Temperature -40℃~+71℃
Optical Lens
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 18~275mm/F5.5 110~1100mm/F5.5 15~300mm/F4 23~450mm/F4
Industrial Applications

The GAVIN GC615HMG thermal imaging module is suitable for long-range monitoring systems and complex environments, including scarcely populated areas, 24/7 all-weather monitoring, and harsh weather conditions.

Our Advantages
  • Product Customization - Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training - Provide core customers with hands-on system setup and operational training
  • Joint Innovation - Collaborate with customers to co-develop innovative infrared application solutions for new products and markets
Frequently Asked Questions
1. How does uncooled focal plane array microbolometer work?

Using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, increasing the temperature of the sensitive material. This causes specific physical parameters of the sensitive material to change accordingly, which are then converted into electrical signals or visible light signals through designed conversion mechanisms to enable object detection.

2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detectors do not require an Integrated Dewar Cooler Assembly (IDCA) device and can operate at room temperature. They offer advantages including fast startup, low power consumption, small size, light weight, long lifespan, and low cost. While their sensitivity may not match cooled infrared detectors, years of development have made uncooled detectors significantly more cost-effective with broader application prospects.
