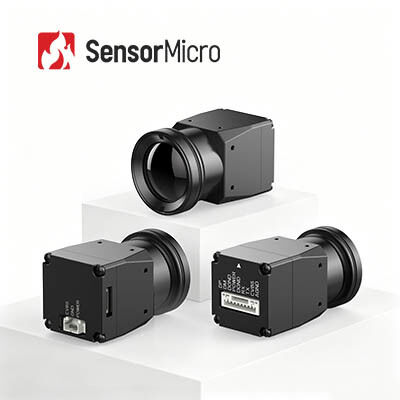

Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution and 12μm Pixel Pitch for Low Power Consumption

Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses

Tailored exclusively for security and surveillance camera systems, the MICO612 thermal module delivers reliable 24/7 thermal imaging performance for all monitoring scenarios. Powered by a high-performance uncooled infrared camera core with 640×512 resolution and 12μm pixel pitch, this module effectively captures object heat radiation and delivers clear thermal images regardless of total darkness, low light, strong backlight and complex environmental interferences.

It enables precise early warning of abnormal temperature changes and real-time threat identification, greatly improving environmental situational awareness for security monitoring. Adopting self-developed mainstream wafer-level infrared detector and dedicated high-efficiency ASIC chip, the thermal module features excellent compatibility and cost-effectiveness. With ultra-compact SWaP design (22.2×22.2×27.2mm dimension, 30.3±2g weight, 680mW low power consumption) and multi-format video output including CVBS, USB and MIPI, it supports plug-and-play integration, minimizing structural design and secondary development costs for rapid mass deployment in critical infrastructure, industrial park and public security monitoring projects.

• Mainstream Compatibility, Cost-Effective
  • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
  • Integrated with a dedicated ASIC chip for high energy efficiency
• Optimized SWaP Design
  • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
  • Weighing just 30.3±2g
  • Low power consumption: 680mW
• Easy Development & Quick Integration
  • Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
  • Easy mounting with minimal structural design effort

The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

In-House Infrared Detector Technologies

• 8-inch 0.11μm VOx Uncooled Infrared Detectors
• 8-inch 0.5μm MCT Cooled Infrared Detectors
• 8-inch 0.5μm T2SL Cooled Infrared Detectors

Production Capacity & Advantages

• 6 million self-developed infrared detectors per year
• 30,000 m² semiconductor fabrication facility
• 20,000 m² cleanroom area

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.

• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
