Uncooled Infrared Thermal Security Camera Module With Multiple Lenses

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Uncooled Infrared Module Typical Power Consumption <1.2W
NETD <30mK Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Resolution 640x512 / 12μm Weight ≤85g
Leave a Message
Product Description
PLUG612 LWIR Thermal Module


PLUG612 Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses


Product Description


PLUG612 thermal module is specially designed for the security and surveillance monitoring camera. By integrating this module, the security camera could sense an object’s heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc. The uncooled infrared camera core serves as the heart of the system, offering exceptional thermal imaging capabilities that enable reliable detection and observation of objects in low-light or no-light conditions. By utilizing the latest uncooled sensor technology, PLUG612 infrared camera core provides high-resolution thermal images with remarkable sensitivity and accuracy.


It uses 640x512 pixel resolution and pixel size at 12um metal-package infrared detector, ensuring that every detail is captured with exceptional clarity, allowing security personnel to identify potential threats or anomalies with ease. The smaller pixel pitch of 12 micrometers enhances the system's ability to detect temperature variations accurately, providing precise thermal imaging even in challenging environments.


The integration of our uncooled infrared camera core with 640x512/17um into security monitoring systems offers a multitude of benefits. It enables the identification of potential threats in complete darkness, provides early detection of abnormal temperature patterns, and enhances situational awareness in various environments. Whether it's securing critical infrastructure, monitoring large-scale industrial facilities, or maintaining public safety, our solution delivers unmatched performance and reliability.


Main Features

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability


Product Specifications


Model PLUG612
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm


Industrial Applications


The PLUG612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

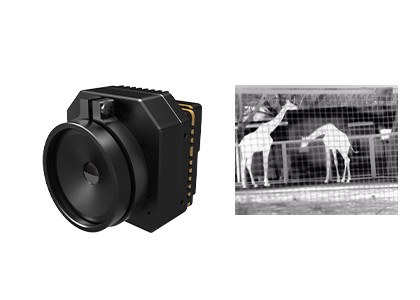

Uncooled Infrared Thermal Security Camera Module With Multiple Lenses 0

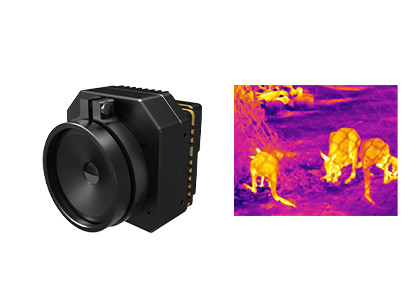

Uncooled Infrared Thermal Security Camera Module With Multiple Lenses 1



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.


2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.


3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
