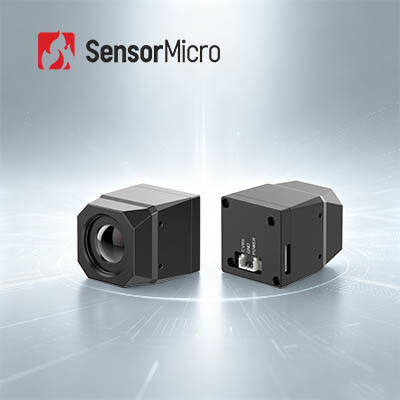

MICO612 Uncooled LWIR Thermal Camera Module with 640x512 Resolution, Low Power Consumption, and Multiple Lenses
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | MICO612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Type | Uncooled Infrared Module | Steady Power Consumption | ≤680mW@5V, 23±3℃ |
|---|---|---|---|
| NETD | ≤30mK/F1.0/25℃ | Frame Rate | 25Hz/30Hz/50Hz |
| Resolution | 640x512 / 12μm | Weight | 30.3±2g |
| Highlight | Uncooled Infrared Thermal Security Camera |
||
Product Description
Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
Product Overview
MICO612 Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses
Product Description
The MICO612 ultra-compact infrared camera core integrates a 640×512 mainstream resolution infrared detector, multiple options of optical lens, image processing board, and robust structural frame. It transmits analog or digital video to backend platforms for integration. With larger array, the MICO612 meets various needs of different customers.
Main Features
- Mainstream Compatibility, Cost-Effective
• Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
• Integrated with a dedicated ASIC chip for high energy efficiency - Optimized SWaP Design
• Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
• Weighing just 30.3±2g
• Low power consumption: 680mW - Easy Development & Quick Integration
• Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
• Easy mounting with minimal structural design effort
Product Specifications
| Model | MICO612 |
|---|---|
| IR Detector | Sensitive Material: VOx |
| Resolution: 640×512 | |
| Pixel Size: 12µm | |
| NETD: ≤30mK/F1.0/25℃ | |
| Spectral Response: 8~14μm | |
| Optical Lens | Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0 |
| FOV: 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V) | |
| Detection Range (8 pixels): 99m (5'11" tall person) 360m (4m×3m vehicle) | |
| Type: Fixed Focus Athermal First lens sealing/coating: IP67 | |
| Image Processing | Analog Video: PAL(default) / NTSC |
| Digital Video: USB /MIPI | |
| Frame Rate: 25Hz/30Hz/50Hz | |
| Start-up Time: ≤6s | |
| Image Algorithm: NUC/DRC/DNS/DDE/SFFC Pseudo Color: 11 types - customizable | |
| Electrical Interface | Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51) |
| Video Interface: CVBS | USB | MIPI | |
| Power Supply | Supply Voltage: DC: 5V~24V |
| Steady Power Consumption: ≤680mW@5V, 23±3℃ | |
| Mechanical | Size: 22.2mm×22.2mm×27.2mm (L×W×H) |
| Weight: 30.3±2g | |
| Environmental Adaptability | Operating Temperature: -40℃~+70℃ |
| Storage Temperature: -45℃～+85℃ | |
| Humidity: 5%~95%, non-condensing | |
| Vibration: Random Vibration, 5.35grms, 3-axis | |
| Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction Certification: RoHS2.0/Reach |
Industrial Applications
- The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
