Uncooled Infrared Thermal Security Camera Module With Multiple Lenses

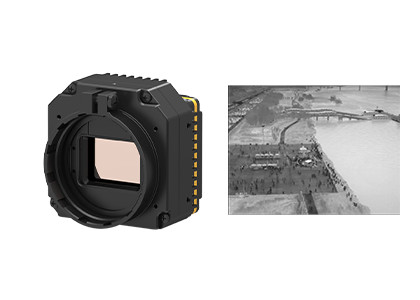

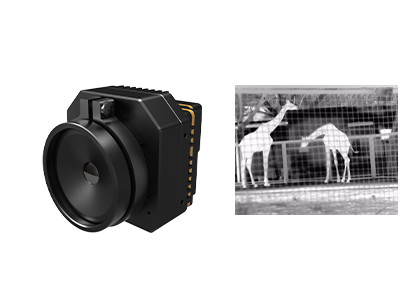

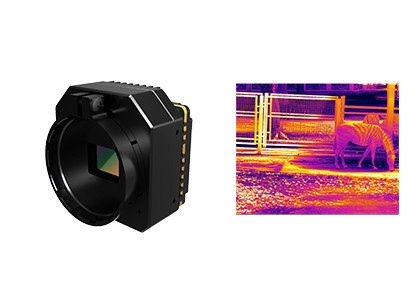

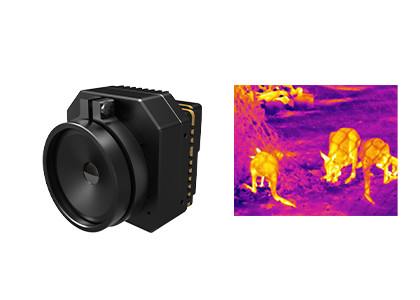

PLUG612 Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses

PLUG612 thermal module is specially designed for the security and surveillance monitoring camera. By integrating this module, the security camera could sense an object’s heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc. The uncooled infrared camera core serves as the heart of the system, offering exceptional thermal imaging capabilities that enable reliable detection and observation of objects in low-light or no-light conditions. By utilizing the latest uncooled sensor technology, PLUG612 infrared camera core provides high-resolution thermal images with remarkable sensitivity and accuracy.

It uses 640x512 pixel resolution and pixel size at 12um metal-package infrared detector, ensuring that every detail is captured with exceptional clarity, allowing security personnel to identify potential threats or anomalies with ease. The smaller pixel pitch of 12 micrometers enhances the system's ability to detect temperature variations accurately, providing precise thermal imaging even in challenging environments.

The integration of our uncooled infrared camera core with 640x512/17um into security monitoring systems offers a multitude of benefits. It enables the identification of potential threats in complete darkness, provides early detection of abnormal temperature patterns, and enhances situational awareness in various environments. Whether it's securing critical infrastructure, monitoring large-scale industrial facilities, or maintaining public safety, our solution delivers unmatched performance and reliability.

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability

The PLUG612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
