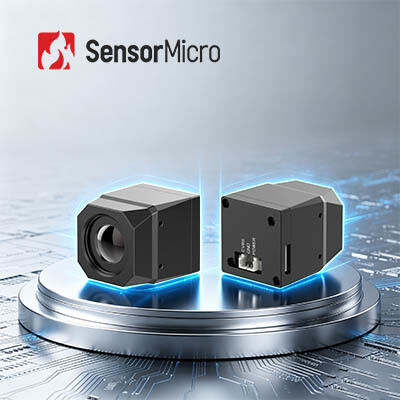

Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution and Low Power Consumption ≤680mW Featuring Multiple Lenses
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | MICO612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Type | Uncooled Infrared Module | Steady Power Consumption | ≤680mW@5V, 23±3℃ |
|---|---|---|---|
| NETD | ≤30mK/F1.0/25℃ | Frame Rate | 25Hz/30Hz/50Hz |
| Resolution | 640x512 / 12μm | Weight | 30.3±2g |
| Highlight | Uncooled Thermal Security Camera Module,Uncooled Infrared Thermal Security Camera Module,Multiple Lenses Thermal Security Camera Module |
||
Product Description
Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses
MICO612 thermal module is specially designed for the security and surveillance monitoring camera. By integrating this module, the security camera could sense an object's heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc. The uncooled infrared camera core serves as the heart of the system, offering exceptional thermal imaging capabilities that enable reliable detection and observation of objects in low-light or no-light conditions. By utilizing the latest uncooled sensor technology, MICO612 infrared camera core provides high-resolution thermal images with remarkable sensitivity and accuracy.
Main Features
Mainstream Compatibility, Cost-Effective
- Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
- Integrated with a dedicated ASIC chip for high energy efficiency
Optimized SWaP Design
- Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
- Weighing just 30.3±2g
- Low power consumption: 680mW
Easy Development & Quick Integration
- Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
- Easy mounting with minimal structural design effort
Product Specifications
| Model | MICO612 |
| IR Detector | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12µm |
| NETD | ≤30mK/F1.0/25℃ |
| Spectral Response | 8~14μm |
| Optical Lens | |
| Focus/F# | 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0 |
| FOV | 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V) |
| Detection Range (8 pixels) | |
| 99m (5'11" tall person) 360m (4m×3m vehicle) |
|
| Type | Fixed Focus Athermal |
| First lens sealing/coating | IP67 |
| Image Processing | |
| Analog Video | PAL(default) / NTSC |
| Digital Video | USB /MIPI |
| Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | ≤6s |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Pseudo Color | 11 types - customizable |
| Electrical Interface | |
| Standard External Interface | 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51) |
| Video Interface | CVBS | USB | MIPI |
| Power Supply | |
| Supply Voltage | DC: 5V~24V |
| Steady Power Consumption | ≤680mW@5V, 23±3℃ |
| Mechanical | |
| Size | 22.2mm×22.2mm×27.2mm (L×W×H) |
| Weight | 30.3±2g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Certification | RoHS2.0/Reach |
Industrial Applications
The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Production Capability
In-House Infrared Detector Technologies
- 8-inch 0.11μm VOx Uncooled Infrared Detectors
- 8-inch 0.5μm MCT Cooled Infrared Detectors
- 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
- 6 million self-developed infrared detectors per year
- 30,000 m² semiconductor fabrication facility
- 20,000 m² cleanroom area
FAQs
1. How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
2. What's the advantage of uncooled infrared detector?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
