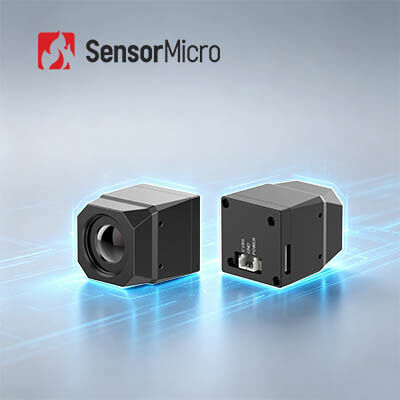

Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution and 12μm Pixel Size Featuring Multiple Lenses

  • Uncooled Infrared Thermal Security Camera Module with 640x512 Resolution and 12μm Pixel Size Featuring Multiple Lenses
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Uncooled Infrared Module Steady Power Consumption ≤680mW@5V, 23±3℃
NETD ≤30mK/F1.0/25℃ Frame Rate 25Hz/30Hz/50Hz
Resolution 640x512 / 12μm Weight 30.3±2g
Highlight

Infrared Thermal Security Camera Module

,

Uncooled Thermal Security Camera Module

,

Uncooled Thermal Security Camera
Leave a Message
Product Description
Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
MICO612 Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses
Product Overview
MICO612 thermal module uses 640x512 pixel resolution and pixel size at 12μm infrared detector, ensuring that every detail is captured with exceptional clarity, allowing security personnel to identify potential threats or anomalies with ease. The smaller pixel pitch of 12 micrometers enhances the system's ability to detect temperature variations accurately, providing precise thermal imaging even in challenging environments.
The integration of our uncooled infrared camera core with 640x512/12μm into security monitoring systems offers a multitude of benefits. It enables the identification of potential threats in complete darkness, provides early detection of abnormal temperature patterns, and enhances situational awareness in various environments. Whether it's securing critical infrastructure, monitoring large-scale industrial facilities, or maintaining public safety, our solution delivers unmatched performance and reliability.
Main Features
  • Mainstream Compatibility, Cost-Effective
    • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
    • Integrated with a dedicated ASIC chip for high energy efficiency
  • Optimized SWaP Design
    • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
    • Weighing just 30.3±2g
    • Low power consumption: 680mW
  • Easy Development & Quick Integration
    • Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
    • Easy mounting with minimal structural design effort
Product Specifications
Model MICO612
IR Detector Sensitive Material: VOx
Resolution: 640×512
Pixel Size: 12µm
NETD: ≤30mK/F1.0/25℃
Spectral Response: 8~14μm
Optical Lens Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0
FOV: 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V)
Detection Range (8 pixels): 99m (5'11" tall person)
360m (4m×3m vehicle)
Type: Fixed Focus Athermal
First lens sealing/coating: IP67
Image Processing Analog Video: PAL(default) / NTSC
Digital Video: USB /MIPI
Frame Rate: 25Hz/30Hz/50Hz
Start-up Time: ≤6s
Image Algorithm: NUC/DRC/DNS/DDE/SFFC
Pseudo Color: 11 types - customizable
Electrical Interface Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface: CVBS | USB | MIPI
Power Supply Supply Voltage: DC: 5V~24V
Steady Power Consumption: ≤680mW@5V, 23±3℃
Mechanical Size: 22.2mm×22.2mm×27.2mm (L×W×H)
Weight: 30.3±2g
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃～+85℃
Humidity: 5%~95%, non-condensing
Vibration: Random Vibration, 5.35grms, 3-axis
Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification: RoHS2.0/Reach
Industrial Applications
The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Production Capability
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive test
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
3. What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
