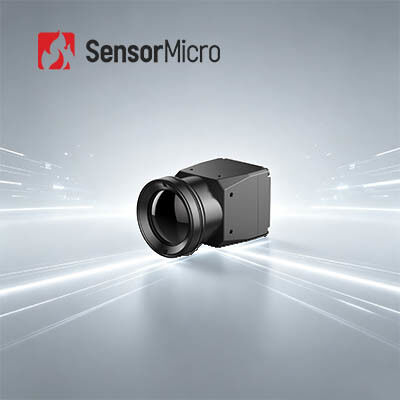

640x512 Resolution 12μm Pixel Size LWIR Thermal Surveillance Camera Module with ≤30mK NETD

MICO612 LWIR infrared module is one of the MICO series developed by SensorMicro. This uncooled infrared camera core with a resolution of 640×512 and pixel size of 12μm provides an ideal solution for security monitoring applications, offering high-quality thermal imaging capabilities even in complete darkness or adverse weather conditions.

The MICO612 ultra-compact infrared camera core integrates a 640×512 mainstream resolution infrared detector, multiple optical lens options, image processing board, and robust structural frame. It transmits analog or digital video to backend platforms for integration, meeting various customer needs with its larger array.

• Mainstream Compatibility, Cost-Effective: Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector for wide adoption; Integrated with dedicated ASIC chip for high energy efficiency
• Optimized SWaP Design: Sectional dimension: only 22.2×22.2×27.2mm (excluding lens); Weight: 30.3±2g; Low power consumption: 680mW
• Easy Development & Quick Integration: Native analog video or digital video output supporting CVBS/USB/MIPI standards—no additional development required; Easy mounting with minimal structural design effort

The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

• Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation
• Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification
• Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
• Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
• Warranty: Original parts and strict process adherence to restore optimal performance

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.

Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
