640x512 Resolution 12μm Pixel Size Uncooled Thermal Camera Module with ≤30mK NETD for LWIR Thermal Imaging

LWIR 640x512 / 12μm Uncooled Thermal Camera Module for Security and Monitoring

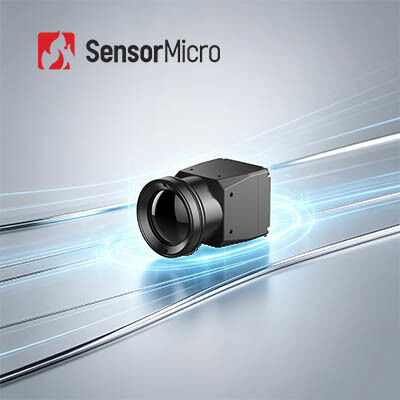

The MICO612 ultra-compact infrared camera core integrates a 640×512 mainstream resolution infrared detector, multiple options of optical lens, image processing board, and robust structural frame. It transmits analog or digital video to backend platforms for integration. With larger array, the MICO612 meets various needs of different customers.

The high-resolution 640x512 sensor and small pixel size of 12μm provide exceptional image clarity and detail, allowing even small temperature differences to be detected in the thermal image. This level of detail is essential for security monitoring applications, as it can help identify potential threats or anomalous behavior that might otherwise go undetected.

• Mainstream Compatibility, Cost-Effective
  • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
  • Integrated with a dedicated ASIC chip for high energy efficiency
• Optimized SWaP Design
  • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
  • Weighing just 30.3±2g
  • Low power consumption: 680mW
• Easy Development & Quick Integration
  • Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
  • Easy mounting with minimal structural design effort

The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
