Uncooled Thermal Infrared Surveillance Camera Module LWIR 640x512 17μm

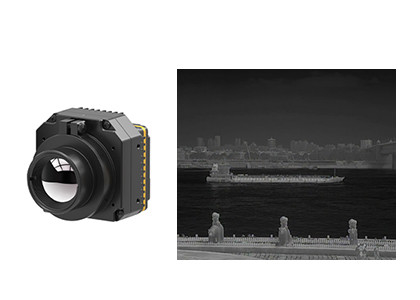

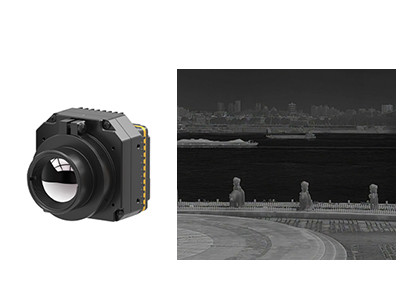

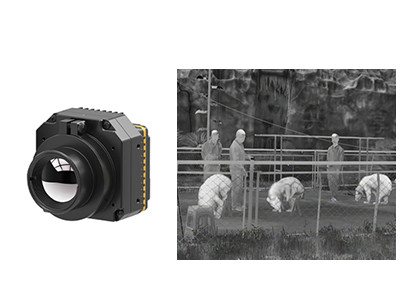

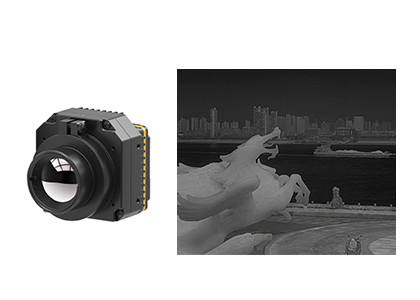

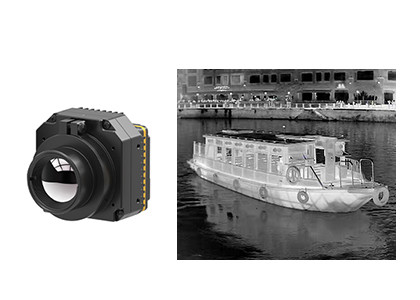

PLUG617 LWIR 640x512 / 17μm Uncooled Thermal Camera Module for Security and Monitoring

PLUG617 LWIR infrared module is one of the PLUG series that are developed by SensorMicro. The PLUG617 uncooled infrared camera core with a resolution of 640x512 and a pixel size of 17um is an ideal solution for security monitoring applications. This type of camera core offers high-quality thermal imaging capabilities, even in complete darkness or adverse weather conditions.

One of the key advantages of uncooled infrared camera cores is that they do not require a cryogenic cooler, which greatly simplifies the design and reduces the cost of the camera system. This makes uncooled infrared cameras ideal for a wide range of security monitoring applications, including surveillance, perimeter protection, and intrusion detection.

The high-resolution 640x512 sensor and small pixel size of 17um provide exceptional image clarity and detail, allowing even small temperature differences to be detected in the thermal image. This level of detail is essential for security monitoring applications, as it can help identify potential threats or anomalous behavior that might otherwise go undetected.

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability

The PLUG617 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

In-House Infrared Detector Technologies

8-inch 0.11μm VOx Uncooled Infrared Detectors

8-inch 0.5μm MCT Cooled Infrared Detectors

8-inch 0.5μm T2SL Cooled Infrared Detectors

Production Capacity & Advantages

6 million self-developed infrared detectors per year

30,000 m² semiconductor fabrication facility

20,000 m² cleanroom area

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting

…

3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
