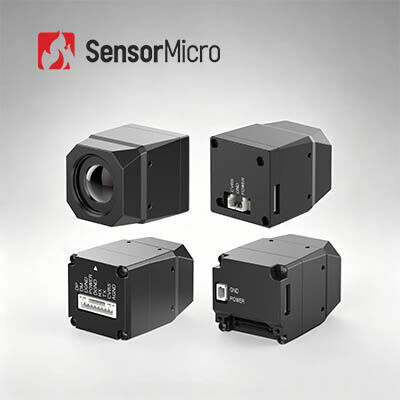

640x512 Resolution 12μm Pixel Size LWIR Spectral Range Uncooled Thermal Camera Module for Surveillance

LWIR 640x512 / 12μm Uncooled Thermal Camera Module for Security and Monitoring

The MICO612 uncooled infrared camera core with a resolution of 640x512 and a pixel size of 12μm is an ideal solution for security monitoring applications. This type of camera core offers high-quality thermal imaging capabilities, even in complete darkness or adverse weather conditions.

The high-resolution 640x512 sensor and small pixel size of 12μm provide exceptional image clarity and detail, allowing even small temperature differences to be detected in the thermal image. This level of detail is essential for security monitoring applications, as it can help identify potential threats or anomalous behavior that might otherwise go undetected.

• Mainstream Compatibility, Cost-Effective
  • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
  • Integrated with a dedicated ASIC chip for high energy efficiency
• Optimized SWaP Design
  • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
  • Weighing just 30.3±2g
  • Low power consumption: 680mW
• Easy Development & Quick Integration
  • Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
  • Easy mounting with minimal structural design effort

The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

• 8-inch 0.11μm VOx Uncooled Infrared Detectors
• 8-inch 0.5μm MCT Cooled Infrared Detectors
• 8-inch 0.5μm T2SL Cooled Infrared Detectors

• 6 million self-developed infrared detectors per year
• 30,000 m² semiconductor fabrication facility
• 20,000 m² cleanroom area

Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

- Night vision
- Search & rescue
- Non-destructive test
- Epidemic prevention
- Thermography
- Security & monitoring
- Firefighting

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
