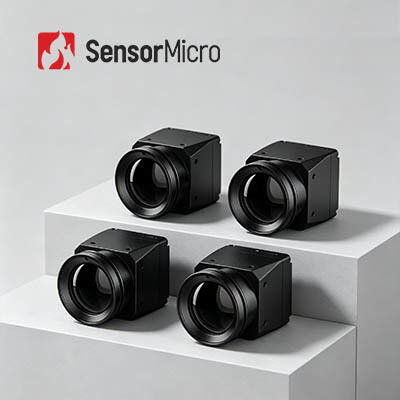

Uncooled Thermal Camera Module with 640x512 Resolution and 12μm Pixel Size for LWIR Spectral Range

  • Uncooled Thermal Camera Module with 640x512 Resolution and 12μm Pixel Size for LWIR Spectral Range
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 12μm NETD ≤30mK/F1.0/25℃
Camera Lens Multiple Available Frame Rate 25Hz/30Hz/50Hz
Digital Video USB /MIPI Spectral Range 8~14μm LW
Highlight

Surveillance Uncooled Thermal Camera

,

640x512 Uncooled Thermal Camera Module

,

RoHS Thermal Security Camera
Leave a Message
Product Description
Surveillance Uncooled Thermal Camera Module LWIR 640x512 12μm
LWIR 640x512 / 12μm Uncooled Thermal Camera Module for Security and Monitoring
Product Description
MICO612 LWIR infrared module is one of the MICO series developed by SensorMicro. The MICO612 uncooled infrared camera core with a resolution of 640x512 and a pixel size of 12μm is an ideal solution for security monitoring applications. This type of infrared camera core offers high-quality thermal imaging capabilities, even in complete darkness or adverse weather conditions.
Main Features
  • Mainstream Compatibility, Cost-Effective
    • Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector, allowing wide adoption
    • Integrated with a dedicated ASIC chip for high energy efficiency
  • Optimized SWaP Design
    • Sectional dimension: only 22.2×22.2×27.2mm (excluding lens)
    • Weighing just 30.3±2g
    • Low power consumption: 680mW
  • Easy Development & Quick Integration
    • Native analog video or digital video output, supporting both CVBS /USB/MIPI standards--no additional development required
    • Easy mounting with minimal structural design effort
Product Specifications
Model MICO612
IR Detector Sensitive Material: VOx
Resolution: 640×512
Pixel Size: 12µm
NETD: ≤30mK/F1.0/25℃
Spectral Response: 8~14μm
Optical Lens Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0
FOV: 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V)
Detection Range (8 pixels): 99m (5'11" tall person) | 360m (4m×3m vehicle)
Type: Fixed Focus Athermal
First lens sealing/coating IP67
Image Processing Analog Video: PAL(default) / NTSC
Digital Video: USB / MIPI
Frame Rate: 25Hz/30Hz/50Hz
Start-up Time: ≤6s
Image Algorithm: NUC/DRC/DNS/DDE/SFFC
Pseudo Color 11 types - customizable
Electrical Interface Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface: CVBS | USB | MIPI
Power Supply: DC: 5V~24V
Steady Power Consumption ≤680mW@5V, 23±3℃
Mechanical Size: 22.2mm×22.2mm×27.2mm (L×W×H)
Weight: 30.3±2g
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃～+85℃
Humidity: 5%~95%, non-condensing
Vibration: Random Vibration, 5.35grms, 3-axis
Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification: RoHS2.0/Reach
Industrial Applications
The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Product Portfolio
  • Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.
  • Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What are the applications of infrared detectors?
Infrared detectors have a wide range of applications across various fields, including:
  1. Thermal Imaging: Used for medical diagnosis, industrial inspection, building diagnostics, and firefighting
  2. Surveillance: Used for surveillance cameras to monitor public spaces, border control and homeland security
  3. Astronomy: Used in astronomy to study celestial objects, such as stars, planets, and galaxies
  4. Remote Sensing: Used in remote sensing applications, including satellite-based earth observation and atmospheric monitoring
  5. Gas Sensing: Used to detect the presence of gases, such as carbon dioxide, methane, and hydrocarbons, in industrial and environmental settings
  6. Night Vision: Used in night vision systems to enhance visibility in low-light conditions, such as in military operations and law enforcement
  7. Medical Imaging: Used in medical imaging, such as for mammography and blood flow detection
  8. Automotive: Used in Advanced Driver-Assistance Systems (ADAS) such as autonomous emergency braking, lane departure warning, and pedestrian detection
The specific type of infrared detector used depends on the application requirements, such as sensitivity, speed of response, spectral range, and operating temperature range.
