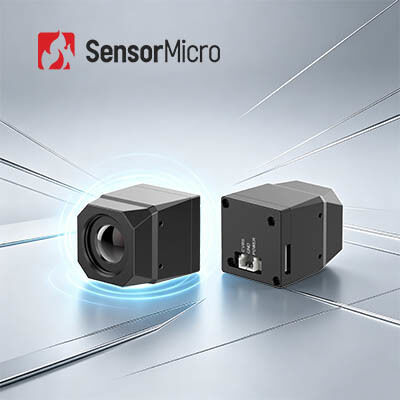

640x512 Resolution 12μm Pixel Size Uncooled Infrared Camera Module for Security & Monitoring
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | MICO612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 12μm | NETD | ≤30mK/F1.0/25℃ |
|---|---|---|---|
| Camera Lens | Multiple Available | Frame Rate | 25Hz/30Hz/50Hz |
| Analog Video | PAL(default) / NTSC | Spectral Range | 8~14μm LW |
| Highlight | Security Uncooled Infrared Camera Module,Monitoring LWIR Infrared Camera Module,Uncooled Thermal Security Camera 17uM |
||
Product Description
Uncooled Infrared Camera Module LWIR 640x512 12μm for Security & Monitoring
Product Overview
MICO612 LWIR infrared module is one of the MICO series developed by SensorMicro. This uncooled infrared camera core with a resolution of 640x512 and pixel size of 12μm provides an ideal solution for security monitoring applications. The camera offers high-quality thermal imaging capabilities, even in complete darkness or adverse weather conditions.
The high-resolution 640x512 sensor and small pixel size of 12μm deliver exceptional image clarity and detail, allowing detection of even small temperature differences in thermal images. This level of detail is essential for security monitoring applications, helping identify potential threats or anomalous behavior that might otherwise go undetected.
Main Features
- Mainstream Compatibility, Cost-Effective: Equipped with self-developed mainstream 640×512/12μm wafer-level infrared detector for wide adoption. Integrated with dedicated ASIC chip for high energy efficiency.
- Optimized SWaP Design: Sectional dimension: only 22.2×22.2×27.2mm (excluding lens). Weighing just 30.3±2g. Low power consumption: 680mW.
- Easy Development & Quick Integration: Native analog video or digital video output, supporting both CVBS/USB/MIPI standards—no additional development required. Easy mounting with minimal structural design effort.
Product Specifications
| Model | MICO612 |
| IR Detector | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12µm |
| NETD | ≤30mK/F1.0/25℃ |
| Spectral Response | 8~14μm |
| Optical Lens | |
| Focus/F# | 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0 |
| FOV | 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V) |
| Detection Range (8 pixels) | |
| 99m (5'11" tall person) 360m (4m×3m vehicle) |
|
| Type | Fixed Focus Athermal |
| First lens sealing/coating | IP67 |
| Image Processing | |
| Analog Video | PAL(default) / NTSC |
| Digital Video | USB / MIPI |
| Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | ≤6s |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Pseudo Color | 11 types - customizable |
| Electrical Interface | |
| Standard External Interface | 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51) |
| Video Interface | CVBS | USB | MIPI |
| Power Supply | |
| Supply Voltage | DC: 5V~24V |
| Steady Power Consumption | ≤680mW@5V, 23±3℃ |
| Mechanical | |
| Size | 22.2mm×22.2mm×27.2mm (L×W×H) |
| Weight | 30.3±2g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Certification | RoHS2.0/Reach |
Industrial Applications
The MICO612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
- Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
- Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
What types of infrared detectors are there?
There are several types of infrared detectors, each with its own detection mechanism and operating characteristics:
- Pyroelectric detectors: Based on the pyroelectric effect where temperature changes induce charge in material. Typically used for motion detection in security systems.
- Thermal detectors: Measure temperature changes caused by infrared radiation absorption:
- Thermopile detectors: Use series of thermocouples to detect temperature changes
- Microbolometer detectors: Detect temperature changes in array of tiny resistive elements
- Photon detectors: Detect individual photons of infrared radiation:
- Photovoltaic detectors: Generate voltage when photons are absorbed
- Photoconductors: Increase conductivity when photons are absorbed
- Quantum detectors: Use quantum tunneling to detect individual photons. Superconducting infrared detectors are one example.
The choice of detector depends on specific application requirements including sensitivity, response speed, spectral range, and operating temperature range.
