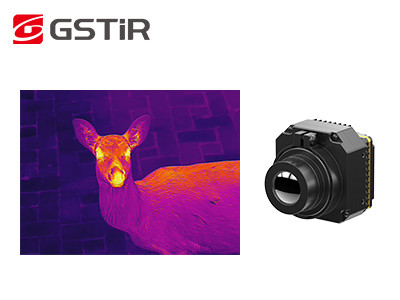

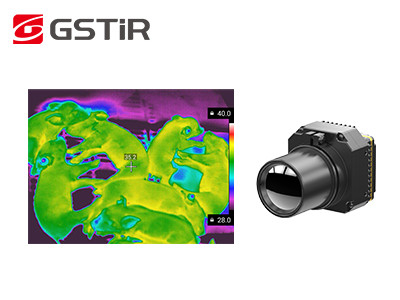

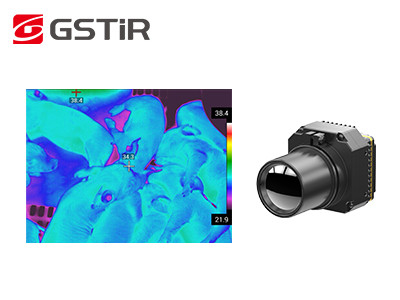

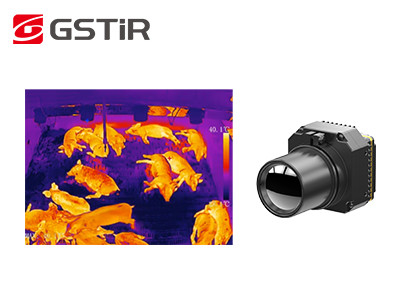

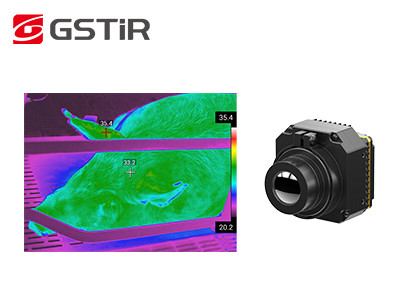

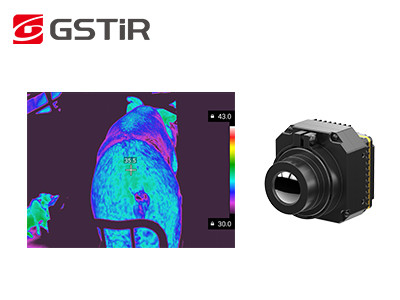

Manual 4V~6V Thermal Camera Core with Fixed Focus Athermal 19mm/24mm

Product Description:

Thermal Camera Core is a high-performance thermal module equipped with an uncooled IR detector. It has a pixel pitch of 12μm and a higher resolution of 640x512. It has a typical NETD of 40mK, a fixed focus athermal of 19mm/24mm, a working voltage of 4V~6V and a spectral range of 8μm to 14μm. It is an ideal product for applications that require high sensitivity and low power consumption. This thermal module is suitable for various applications such as industrial thermal imaging, security monitoring, night vision, and automotive. It provides high-quality images with excellent sensitivity and low noise.

The Thermal Camera Core has superior imaging performance, providing a high-precision thermal image with a NETD of 40mK. It has a pixel pitch of 12μm, which is small enough for high-resolution imaging. It also has a fixed focus athermal of 19mm/24mm, a working voltage of 4V~6V, and a spectral range of 8μm to 14μm, providing superior imaging performance. In addition, it has low power consumption, making it suitable for a variety of applications with different power requirements.

The Thermal Camera Core is an ideal product for applications that require high sensitivity and low power consumption. It is suitable for various applications such as industrial thermal imaging, security monitoring, night vision, and automotive. It provides high-quality images with excellent sensitivity and low noise. With its superior performance, it is the ideal product for any application that needs thermal imaging.

Features:

• Product Name: Thermal Camera Core
• Focus: Manual
• Resolution: 640×512
• Working Voltage: 4V~6V
• Typical NETD: <40mK
• Pixel Pitch: 12μm
• Infrared Camera: Yes
• Thermal Imaging Module: Yes
• Thermal Camera: Yes

Technical Parameters:

Applications:

Introducing GSTiR PLUG612, the most innovative and advanced thermal camera core on the market. This uncooled infrared detector is equipped with a 44.45mm×44.45mm×26mm size and 67g weight, making it perfect for a wide variety of applications. With its 50Hz frame rate and <40mK NETD, the PLUG612 is the ideal choice for high performance thermal imaging.

The PLUG612 thermal camera core is designed to meet the demands of a broad range of applications, such as surveillance, automotive, industrial, and medical. With its extension components, including VPC/ USB3.0/ GigE/ Cameralink, the PLUG612 offers unrivalled flexibility and image performance.

GSTiR's PLUG612 thermal camera core is perfect for any application requiring the highest levels of thermal imaging performance, and it is available with a minimum order quantity of 1. Get ready to experience the best in infrared detection with GSTiR's PLUG612 thermal camera core.

Customization:

Brand Name: GSTiR
Model Number: PLUG612
Place of Origin: China
Minimum Order Quantity: 1
Sensor: Uncooled Focal Plane Arrays
Fixed Focus Athermal: 19mm/24mm
Frame Rate: 50Hz
Spectral Range: 8μm To 14μm
Size: 44.45mm×44.45mm×26mm

Features:
• 640x512/12um microbolometer
• Thermal Camera Core
• Uncooled Focal Plane Arrays
• 19mm/24mm Fixed Focus Athermal
• 50Hz Frame Rate
• 8μm To 14μm Spectral Range
• 44.45mm×44.45mm×26mm Size

Support and Services:

We provide high-quality technical support and services for Thermal Camera Core products. Our experienced team of engineers and technicians offer comprehensive and reliable solutions to ensure optimal performance and maximum customer satisfaction.

Our technical support covers:

• Installation and configuration of Thermal Camera Core products
• Troubleshooting and maintenance of Thermal Camera Core products
• Remote monitoring and diagnostics of Thermal Camera Core products
• Software updates and upgrades for Thermal Camera Core products

Our services include:

• On-site repair and maintenance of Thermal Camera Core products
• Regular system checks and performance optimization of Thermal Camera Core products
• Support for custom applications and system integrations with Thermal Camera Core products
• Training and consultation on the usage of Thermal Camera Core products

For any inquiries or assistance, please contact us via email at enquiry@gst-ir.com.
