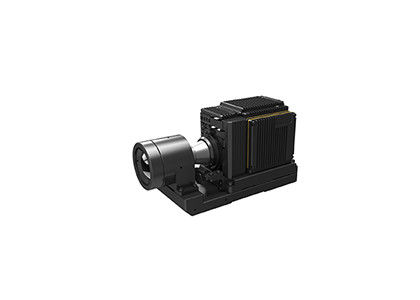

Ultra Clear Cooled MWIR Camera Core

Ultra Clear Cooled MWIR Camera Core
Ultra Clear Cooled MWIR Camera Core

Large Image :  Ultra Clear Cooled MWIR Camera Core

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Used For: Surveillance Camera Resolution: 1280x1024/12μm
Frame Rate: 50Hz/100Hz High Sensitivity: NETD≤20mK
Spectral Range: 3.7~4.8μm (MW) Size: 165x86x107mm
High Light:

Cooled MWIR Camera Core

,

Ultra Clear MWIR Camera Core

GAVIN1212 for Ultra Clear Thermal Imaging



GAVIN1212 MCT 1280x1024 / 12μm Cooled MWIR Infrared Module for Ultra Clear Thermal Imaging



Product Description



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). It is available with different resolution formats, different wave bands and also different continuous optical lens options. GAVIN1212 high resolution thermal camera module is one of GAVIN series with large array 1280x1024@12μm MWIR detector and detector dewar cooler (ddc) inside.



The typical NETD of GAVIN1212 is less than 20mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance. Equipped with continuous zoom lenses such as 37.5~750mm etc, it is ideal choice for system integration in security and surveillance.



As a leading thermal imaging module manufacturer, Global Sensor Technology provides customers with a wide variety of mature integration solutions. By using GST infrared camera modules, it is convenient for them to conduct secondary development and reduce their time of independent research and development.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity, NETD≤20mK

- Wide Field of View, Resolution up to 1280x1024

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤8min
NETD (20°C) ≤20mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin; HDMI Special Output Interface
Analog Video /
Digital Video HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 24V±1V
Stable Power Consumption 16W
Dimension (mm) 165x86x107
Weight ≤1600g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2



Industrial Applications



The GAVIN1212 thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



Ultra Clear Cooled MWIR Camera Core 0



About GST Infrared Team



Ultra Clear Cooled MWIR Camera Core 1



FAQs



1. How to choose proper infrared detector resolution?

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?

- The gray white is more suitable for the target with small temperature difference

- The red and blue is more suitable for the scene where the problem points need to be found.

- The iron red is the standard color palette of the power industry.

Note: no matter which palette you choose, the thermal temperature will not change at all.



3. How to choose a suitable infrared thermal camera lens?

- Standard lens can meet normal targets with appropriate distance

- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance

- To see more detail of objects at close distance, wide angle lens is better.

- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
