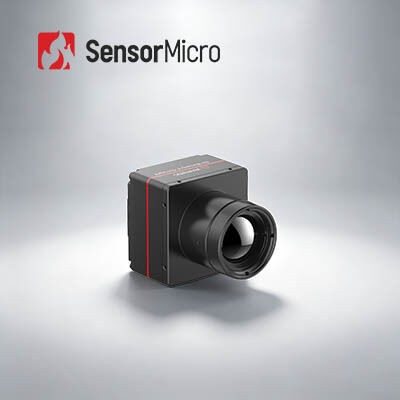

HD LWIR Thermal Camera Core with 1280×1024 Resolution and Fixed Focus Athermal Lens for Shutterless Operation

  • HD LWIR Thermal Camera Core with 1280×1024 Resolution and Fixed Focus Athermal Lens for Shutterless Operation
Place of Origin China
Brand Name SensorMicro
Certification RoHS2.0; Reach
Model Number iSE1212
Minimum Order Quantity 1
Payment Terms T/T
Product Details
Resolution 1280×1024 Working Voltage 2.7V~5.3V
Communication Interface TTL-232/USB Digital Frame Rate 25Hz/30Hz/50Hz
Digital Zoom 1x/2x/4x/8x Typical NETD ≤30mK
Highlight

Manual Thermal Camera Core

,

Fixed Focus Thermal Camera Core

,

19mm Thermal Camera Core
Leave a Message
Product Description
HD LWIR Thermal Camera Core with Fixed Focus Athermal Lens 19mm/25mm
Product Overview

The iSE1212 is a high-performance thermal module featuring an uncooled IR detector with 12μm pixel pitch and 1280×1024 resolution. With typical NETD of 30mK and spectral range of 8μm to 14μm, it delivers exceptional sensitivity and low power consumption for demanding applications.

Key Features
  • High-Definition Imaging: Megapixel thermal imaging with smooth, lag-free performance, wider field of view, and enhanced detail
  • Shutterless Operation: No calibration required during use, eliminating image stuttering with silent operation
  • Advanced Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, and compatibility with various Micro OLED displays
  • Flexible Compatibility: Works with wide range of optical lenses and extended components for easy secondary development
Technical Specifications
Model iSE1212
IR Detectors
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4 (Button functions customizable)
OLED Driving Support I2C, 16bit/24bit Parallel Port, datavalid and other drive screen signals
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size (mm) 38×39×28 | 68×69×30.2
Bare Core Weight (g) 65±3 | 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm
Shutter Components Optional
Protection Level IP67 (Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms
Certification ROHS2.0/REACH
Applications

The iSE1212 thermal camera core is ideal for applications requiring superior thermal imaging performance, including Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, and Consumer Electronics.

Technical Support & Services

We provide comprehensive technical support and services to ensure optimal performance and maximum customer satisfaction.

Technical Support Includes:
  • Installation and configuration
  • Troubleshooting and maintenance
  • Remote monitoring and diagnostics
  • Software updates and upgrades
Our Services Include:
  • On-site repair and maintenance
  • Regular system checks and performance optimization
  • Support for custom applications and system integrations
  • Training and consultation on thermal camera core usage
