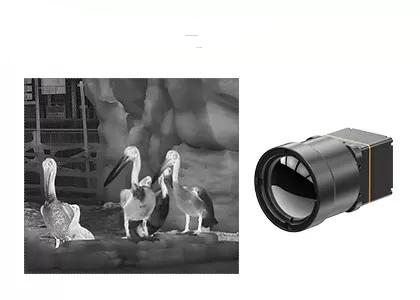

LWIR Infrared Thermal Module 640x512 25Hz/30Hz For UAV Payloads

LWIR Uncooled 640x512 12μm Thermal Imaging Module with 25mm Lens for Outdoors

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.

The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.

- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W


The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue


1. Advantages of T2SLCooled Infrared Detector

Type II superlattice is mainly used in the fabrication of high-performance infrared focal plane imaging arrays. Based on Type II superlattice materials, the cooled infrared focal plane detector products have many advantages, which have broad market prospects in various fields.
- High quantum efficiency, high frame rate, high sensitivity,
- Strong penetration, strong anti-interference
- All-weather work
- Wider response band and higher operating temperature
- Small dark current, high detection efficiency of long wave/dual color
- High detection rate, better uniformity, more suitable for large area array devices
