Tiny and Lightweight Uncooled Thermal Camera Core with 640x512 Resolution and 8μm Pixel Pitch for Photovoltaic Inspection

  • Tiny and Lightweight Uncooled Thermal Camera Core with 640x512 Resolution and 8μm Pixel Pitch for Photovoltaic Inspection
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL608
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 Pixel Pitch 8μm
Power Consumption 0.4W Spectral Range 8~14μm
Typical NETD ≤30mK Frame Rate 30/50Hz
Highlight

Compact Uncooled Drone Thermal Camera

,

Drone Thermal Camera Core 640x512

,

Photovoltaic Inspection Uncooled Thermal Camera
Leave a Message
Product Description
Tiny and Light Weight Uncooled Thermal Camera Core 640x512/8μm for Photovoltaic Inspection
Product Description

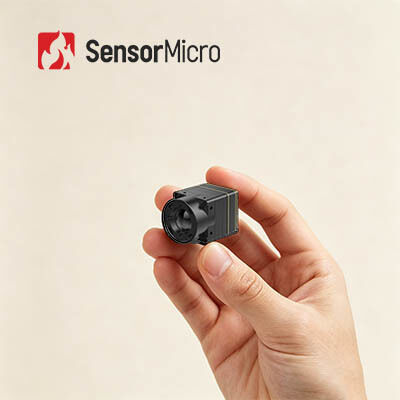

The iTL608 infrared thermal camera core features an ultra-compact form factor of 13 × 13 × 18.3 mm--approximately the size of a thumb--and weighs only 6.7 g, comparable to the weight of two coins, pushing the limits of lightweight and compact design once again. Equipped with a VOx infrared detector, the 640 × 512/8μm iTL608 delivers a high thermal sensitivity of NETD≤30mK. Operating in the 8-14μm LWIR, it enables precise detection of typical ambient-temperature targets. The core supports a fast startup time of ≤ 6 seconds and frame rates of 30 Hz/50 Hz, while integrated NUC and 3DNR algorithms optimize image uniformity and overall image quality. Designed for reliable operation in demanding environments, the iTL608 functions across a wide temperature range of -40°C to +70°C, making it well suited for handheld devices and other portable platforms, addressing application needs in security surveillance, temperature measurement, and night vision.

Main Features
  • Extreme Lightweight Design
    Compact size of 13 × 13 × 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens)
    Among the highest levels of integration in its class
  • High Sensitivity, Precise Detection
    8μm ultra-small pixel size with 640 × 512 resolution, delivering fine detail and clear images
    Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration
    Multiple optical lens options available to meet diverse application requirements
    Supports multiple image output interfaces, including MIPI/USB 2.0/BT.656
    RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL608
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 30/50Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
Software Module Control & Video Display
Electrical
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232/USB2.0/I2C
Digital Video Interface MIPI/USB2.0/BT.656
Supply Voltage 4-5.5V
Typical Power Consumption 0.4W
Mechanical
Size (including lens) With 6mm lens: 13 × 13 × 18.3 mm (lens outer diameter Φ12.3 mm)
With 8.7mm lens: 13 × 13 × 19.8 mm (lens outer diameter Φ15.6 mm)
With 16.7mm lens: 13 × 13 × 27.9 mm (lens outer diameter Φ22.2 mm)
With 30mm lens: 13 × 13 × 39 mm (lens outer diameter Φ36 mm)
Weight (including lens) 6.7±1.5g (6mm lens)
7.5±1.5g (8.7mm lens)
17±1.5g (16.7mm lens)
42.7±1.5g (30mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 6/8.7/16.7/30mm
Industrial Applications

The iTL608 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

Production Capability
  • In-House Infrared Detector Technologies
    8-inch 0.11μm VOx Uncooled Infrared Detectors
    8-inch 0.5μm MCT Cooled Infrared Detectors
    8-inch 0.5μm T2SL Cooled Infrared Detectors
  • Production Capacity & Advantages
    6 million self-developed infrared detectors per year
    30,000 m² semiconductor fabrication facility
    20,000 m² cleanroom area
FAQs
1. What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;
Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
2. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
