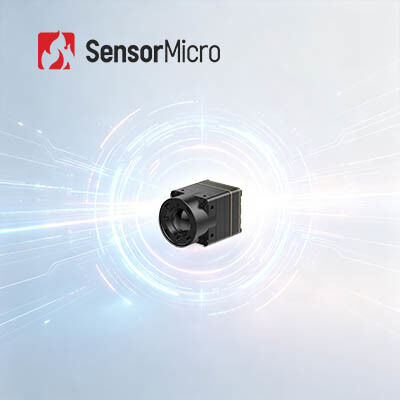

Uncooled Infrared Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD for Industrial Thermal Imaging

Designed for rigorous industrial and outdoor applications, the iTL608 infrared thermal camera core delivers outstanding stability and durability alongside miniaturized high performance. Its ultra-compact and lightweight structure ensures easy integration into compact portable industrial devices without compromising structural stability.

Adopting mature VOx uncooled infrared detection technology, the core provides consistent 640×512 high-definition thermal imaging and reliable ≤30mK temperature sensitivity, ensuring accurate and repeatable detection results in long-term industrial operation. The integrated NUC and 3DNR algorithms effectively eliminate image distortion and noise interference caused by environmental changes, maintaining stable image quality in complex conditions.

With an ultra-wide operating temperature range of -40°C to +70°C, it resists extreme cold and heat, adapting to harsh industrial sites, outdoor field operations, and all-weather monitoring scenarios. Fast startup, high-frame-rate transmission and rich interface compatibility further ensure efficient and stable long-term operation of industrial thermal imaging systems.

• Extreme Lightweight Design: Compact size of 13 × 13 × 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens) - among the highest levels of integration in its class
• High Sensitivity, Precise Detection: 8μm ultra-small pixel size with 640 × 512 resolution, delivering fine detail and clear images with typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
• Simplified Development, Fast Integration: Multiple optical lens options available to meet diverse application requirements; supports multiple image output interfaces including MIPI/USB 2.0/BT.656; RAW and YUV image data output with control via serial port/I2C

The iTL608 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

• See through total darkness
• Identification under camouflage
• Long range detection
• Heat distribution detection
• Non-contact temperature measurement
• Occupation awareness
• And so on

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
