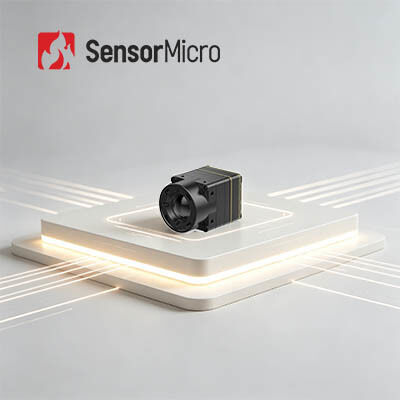

iTL608 Ultra-Miniature Uncooled Infrared Camera Core with 640x512 Resolution and 8μm Pixel Pitch

Redefine portable thermal imaging with the ultra-miniature iTL608 infrared thermal camera core! Featuring an ultra-compact 13×13×18.3mm footprint and an ultra-light 6.7g weight, this high-integration core breaks the limits of miniaturized thermal imaging design.

Adopting 8μm fine pixels and 640×512 high resolution with NETD ≤ 30mK superior thermal sensitivity, it captures tiny temperature differences and delivers crisp, detailed thermal images. It supports 6-second fast startup and smooth 30Hz/50Hz frame rates, while built-in NUC and 3DNR technologies ensure uniform and noise-free visuals.

With full-temperature operation from -40°C to +70°C, multi-lens compatibility and diverse output interfaces, the iTL608 enables plug-and-play integration, perfectly suited for handheld devices, security monitoring, industrial temperature detection, and night vision applications.

• Extreme Lightweight Design: Compact size of 13 × 13 × 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens) - among the highest levels of integration in its class
• High Sensitivity, Precise Detection: 8μm ultra-small pixel size with 640 × 512 resolution, delivering fine detail and clear images with typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
• Simplified Development, Fast Integration: Multiple optical lens options available to meet diverse application requirements; supports multiple image output interfaces including MIPI/USB 2.0/BT.656; RAW and YUV image data output with control via serial port/I2C

The iTL608 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

• Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements
• Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications
• Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability - designed to perform under a wide range of environmental challenges
• Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields

Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

Night vision, Search & rescue, Non-destructive testing, Epidemic prevention, Thermography, Security & monitoring, Firefighting, and many other applications.

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
