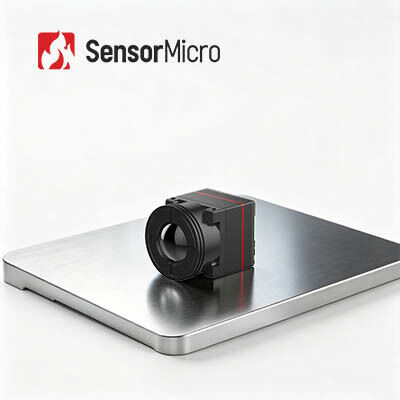

Vanadium Oxide Uncooled IR Camera Core with 640x512 Resolution and 40mK NETD for Security Monitoring

  • Vanadium Oxide Uncooled IR Camera Core with 640x512 Resolution and 40mK NETD for Security Monitoring
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL612 Pro
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 Frame Rate 25/30Hz/50Hz
Typical NETD ≤40mK Power Consumption 0.5W
Spectral Range 8~14μm Pixel Pitch 12μm
Highlight

Vanadium Oxide IR Camera Core

,

UAV Payloads IR Camera Core

,

40mK Uncooled IR Camera
Leave a Message
Product Description
Vanadium Oxide Uncooled IR Camera Core Typical NETD 40mK for Security Monitoring
Tiny Size Uncooled Infrared Camera Core 640x512 12um for Security Monitoring

Tailored for compact and high-precision infrared system scenarios, the iTL612Pro ultra-miniature infrared camera core solves core pain points of structural load limitation, difficult integration and high power consumption of miniature thermal imaging devices. Adopting advanced 640×512 high-resolution detection technology and optimized image algorithms, it delivers consistent, high-quality thermal imaging results in limited-space installation environments. Its ultra-light 13.7g weight, micro body size and 0.5W low-power design make it ideal for portable devices, mini monitoring equipment, wearable thermal imagers and compact industrial detection systems. With flexible lens selection and multi-protocol data output compatibility, it supports rapid deployment and iterative upgrading of diverse industry infrared solutions.

Main Features
Unmatched Lightness and Minimal Load
  • Ultra-Miniature Size: 17.3×17.3×23.4 mm (including 9.1 mm lens)
  • Ultra-Lightweight: 13.7±0.5g (including 9.1 mm lens)
  • Ultra-Low Power Consumption: As low as 0.5W
Mainstream FPA with Clear Imaging
  • 640x512 Resolution for widespread integration
  • Enhanced Image Clarity: Multiple New-generation image algorithms for improved image quality
Easy Development & Seamless Integration
  • Multiple lens options available to suit various application scenarios
  • Supports multiple image output interfaces: DVP8, LVDS, MIPI, USB 2.0, and BT.656
  • RAW/YUV/Matrix-TEMP data output with serial port control
Product Specifications
Model iTL612Pro
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤40mK
Image Processing
Digital Frame Rate 25/30Hz/50Hz
Start-up Time ≤5s
Digital Video RAW/YUV/Matrix-TEMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10(Black Hot/White Hot/Pseudo Color)
PC Software
Infrared Module Module Control & Video Display
Electrical
Standard External Interface 30Pin_HRS interface:DF40C-30DP-0.4V(51)
MIPI External Interface 34Pin_Panasonic Connector Interface:AXE634124
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/LVDS/MIPI/USB2.0/BT.656
Supply Voltage 4.2-5.5V
Typical Power Consumption 0.5W
Temperature Measurement
Operating Temperature -10℃~+50℃
Temperature Measurement Range /
Temperature Measurement Accuracy /
Partial Temperature Measurement /
SDK /
Mechanical
Size (including lens) 17.3×17.3×23.4(9.1mm lens)
17.3×17.3×30.2(13mm lens)
17.3×17.3×38(25mm lens)
17.3×17.3×54(45mm lens)
Weight (including lens) 13.7±0.5g(9.1mm lens)
20±0.5g(13mm lens)
27.3±0.5g(25mm lens)
51±0.5g(45mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration Sine Vibration, Frequency: 10HZ～150HZ～10HZ, Peak Value: 0.15mm, Axial Direction: X, Endurance Time: 8min/axis, Cycles: 2 times
Impact Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 9.1/13/25/45mm
Industrial Applications
  • Forest Firefighting
  • Power Maintenance
  • Photovoltaic Inspection
  • Security Monitoring
  • Wearable Devices
  • Portable Devices
Company Profile

SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.

FAQs
1. What is infrared detector / thermal imaging sensor?
Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.
2. What is WLP?
WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.
3. What's the advantage of WLP?
WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. SensorMicro, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
