15μm 640x512 MWIR Infrared Detector Cooled for Remote Monitoring System

  • 15μm 640x512 MWIR Infrared Detector Cooled for Remote Monitoring System
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C615M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512/12μm NETD ≤17mK (F2); ≤18mK (F4)
Spectral Range8~14μm 3.7~4.8μm MW Operation Temperature -45℃~+71℃
Highlight

640x512 Infrared Detector Cooled

,

15uM Infrared Detector Cooled

,

Remote Monitoring MWIR Infrared Detector
Leave a Message
Product Description

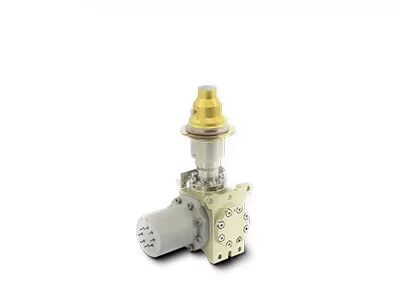

15μm 640x512 MWIR Infrared Detector Cooled for Remote Monitoring System

Product Description


C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by SensorMicro. It is with the most popular 640x512/15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.


The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.


 Main Features


- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption


Product Specifications


Model C615M MW
Material MCT
Resolution 640x512
Pixel Pitch 15μm
Spectral Range 3.7μm～4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR)
Dynamic Range ≥75dB
Number of Output 4; Up to 10Mpixel/s per Output
NETD F2: ≤17mK
F4: ≤18mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046
Steady Power Consumption ≤6W@RS058
≤5W@RS046
Max Power Consumption ≤12W @ RS058
≤11W @ RS046
Power Supply RS058: 24V DC
RS046: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046
Weight ≤600g @ RS058
≤350g @ RS046
Dimension (mm) RS046: 122x46.3x82
RS058: 147x58.5x71
Working Temperature -45°C ~ +71°C


Industrial Applications


The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

15μm 640x512 MWIR Infrared Detector Cooled for Remote Monitoring System 0


Cooled Uncooled Infrared Detectors


Diversified Product Portfolio

Deep Technical Expertise

Rigorous Reliability Validation Ensures Quality Assurance

Focused on Innovation and Practical Implementation in Infrared Sensing

Professional Technical Support and Joint Development Services


FAQs


1. Advantages of Optical Gas Imaging

Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function

2．Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.

After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.

The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
