1024×768 10μm Cooled Infrared Detector with LS711H Cooler for MWIR Infrared Detector Systems

Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C1010H
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1024×768/10μm NETD 20mK(F2); 25mK(F4)
Spectral Range 3.7~4.8μm MW Weight ≤235g
Steady Power Consumption (23℃) ≤3W Cooling Time (23℃) ≤3min
Highlight

MWIR Cooled Infrared Detectors

,

RS046H Cooled Infrared Detectors

,

Flexible mwir detector

Leave a Message
Product Description
Product Description

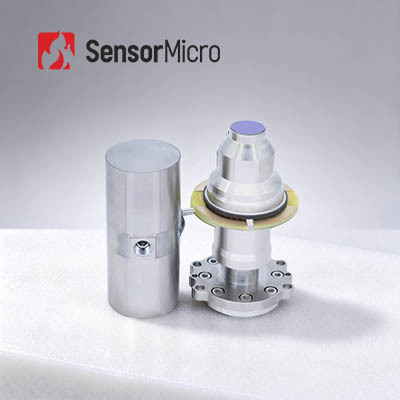

Designed around a high-performance linear cryocooler, the C1010H HOT cooled infrared detector offers 1024×768 resolution and 10μm pixel size. The 150K focal plane operation preserves strong imaging performance while realizing notable SWaP gains. This detector is developed to fulfill the needs of long-running missions, tight system integration, and high-precision thermal imaging, making it a reliable core component for various thermal observation systems.

Main Features
Larger FPA, Smaller Pixel Size
  • 1024×768 megapixel resolution for a wide field of view
  • 10μm small pixel size for high spatial resolution and long-range detection
Fast Cooling, Lower Power Consumption
  • Cooling time as low as 3 minutes
  • Stable power consumption down to 3W
High Reliability, Durable Operation
  • Mean Time To Failure (MTTF) up to 25,000 hours
Product Specifications
Model C1010H
Sensitive Material T2SL
Resolution 1024×768
Pixel Size 10μm
Spectral Response 3.7±0.2μm~4.8±0.2μm
Typical NETD 20mK(F2)
25mK(F4)
Max. Frame Rate 100Hz
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Operating Temperature -45℃~+71℃
Cryocooler LS711H
Cooling Time (23℃) ≤3min
Max. Power Consumption (71℃) ≤12W
Steady Power Consumption (23℃) ≤3W
Size (mm) Cryocooler: φ26×55.8
Dewar: 33×37.5×70
Weight (g) ≤235
Industrial Applications

The C1010H MWIR cryogenically cooled infrared detector is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, etc.

Your Trusted Partner in Infrared Sensing
Deep Technical Expertise

With many years of experience in the research, development, and application of infrared sensor technology, we have built strong capabilities across chip design, wafer fabrication, packaging and testing, as well as system integration. Our solid foundation enables us to continuously deliver innovative and reliable products that meet evolving market demands.

Focused on Innovation and Practical Implementation in Infrared Sensing

We are committed to driving technological breakthroughs in thermal imaging, constantly pushing the boundaries in NETD, SWaP, and operating temperature. Our products consistently lead in applications across security, industrial monitoring, intelligent systems, and more.

Diversified Product Portfolio

Backed by independent R&D and multiple technical pathways, we offer a comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for a wide variety of industries.

Rigorous Reliability Validation Ensures Quality Assurance

Supported by a robust quality management system, our products undergo multiple testing procedures throughout production to ensure long-term stability and reliability.

Professional Technical Support and Joint Development Services

Our engineering team works closely with customers' R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market. Your success is our shared mission.

FAQs
1. What is infrared thermal imaging?

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into a visible infrared thermal image with the temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation abilities and infrared reflection strengths.

2. What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive testing
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
3. What is a thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens, and hardware electronics with software and algorithms embedded. It is the minimum unit of a thermal imaging device.
