Type II Superlattice Cooled Infrared Detectors Long Wave 320x256 / 30μM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 320x256 / 30μm | NETD | ≤25mK (F2) |
|---|---|---|---|
| Spectral Range | 7.7~9.5μm LW | Size | 142x58.5x71mm |
| High Light | Superlattice Cooled Infrared Detectors,320x256 Cooled Infrared Detectors,320x256 Infrared Detectors |
||
Product Description

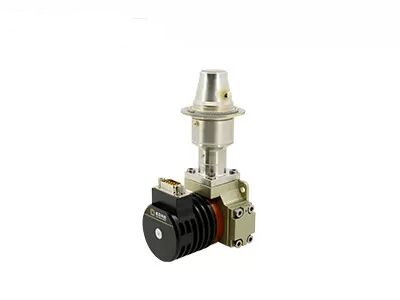

Type II Superlattice Cooled Infrared Detectors Long Wave 320x256 / 30μM
Product Description
C330S LWIR is one of T2SL lwir cooled infrared detectors developed by Global Sensor Technology (GST). It consists of a 320x256@30µm Type II Superlattice (T2SL) cooled photon detector, Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.
Without fear of interference, C330S LWIR cooled lwir detector is suitable for target detection in complex background, such as ships on the sea in the scene of light reflection on the water surface, aircraft in the background of clouds in the sky, etc.
T2SL cooled detectors adopts the world's leading T2SL technology which enables mass production capability and thus ultimately it will benefit the users with more affordable price but never compromise in performance. The industrial standard size and interface enables customers to switch to and benefit from the most advanced T2SL technology without further R&D investment.
Main Features:
- Resolution: 320x256
- Pixel Pitch: 30µm
- High Sensitivity
- Good Imaging Effect
- Low Noise
- Stable Performance
- Excellent Non-uniformity
Product Specifications
| Model | C330S LWIR |
| Material | T2SL |
| Resolution | 320x256 |
| Pixel Pitch | 30μm |
| Spectral Range | 7.7μm～9.5μm LW |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 36Me-/12Me- |
| Dynamic Range | ≥80dB |
| Output Channel | 1 or 4; Up to 6.6 Mpixel/s per Output |
| NETD | ≤25mK (F2) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cooler Type | RS058 |
| Steady Power Consumption | <8W |
| Max Power Consumption | <17W |
| Power Supply | 24V DC |
| Cooling Time | <5min30s |
| Weight | ≤600g |
| Dimension (mm) | 142x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C330S LWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Our Advantages
FAQs
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2．Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
