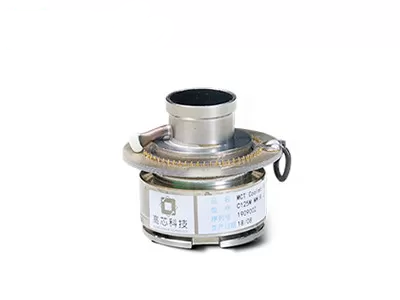

MCT Cooled Thermal Imaging MWIR Infrared Detector Mid Wave 128x128 / 25μM

  • MCT Cooled Thermal Imaging MWIR Infrared Detector Mid Wave 128x128 / 25μM
Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number C125M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 128x128 NETD ＜20mK
Spectral Range 3.7~4.8μm MW Pixel Size 25μm
High Light

Thermal Imaging MWIR Infrared Detector

,

MCT Cooled MWIR Infrared Detector

,

Mid Wave Cooled Infrared Detectors
Leave a Message
Product Description
C125M MWIR Cooled Infrared Detector



Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector by GST



Product Description



The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.



The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.



 Main Features


• Resolution: 128x128
• Pixel Size: 25μm
• High Sensitivity
- Compact Design
- Lightweight

• Throttling cool down, fast startup
• Small size, light weight, compact structure
• No vibration
• No electromagnetic interference



Product Specifications



Model C125M MWIR
Sensitive Material HgCdTe/MCT
Resolution 128×128
Pixel Size 25μm
Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm
Working Mode Snapshot; Integration Mode; Anti-blooming
Charge Capacity 24Me-/8Me-
Dynamic Range ≥80dB
Number of Output Single; Up to 6.5MHz
Cryocooler JF428 JF618
Typical NETD 10mK (F1.5) 10mK (F2)
Effective Pixel Rate ≥99.5% ≥99.5%
Response Non-uniformity ≤5% ≤5%
Cooling Time (20℃) ≤5s (50MPa, Ar, 20℃) ≤20s (50MPa, Ar, 20℃)
Maximum Size (mm) Φ35×48.5 Φ35×42.5
Weight ≤100g ≤90g
Operating Temperature -45℃～+71℃ -45℃～+71℃



Company Profile


MCT Cooled Thermal Imaging MWIR Infrared Detector Mid Wave 128x128 / 25μM 0


FAQs



1. Advantages of Optical Gas Imaging

Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function

2．Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.

After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.

The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
