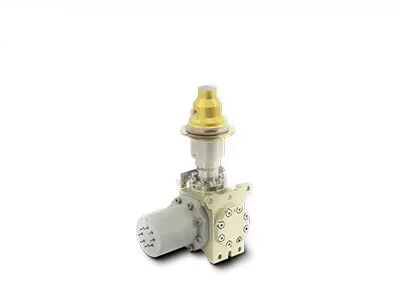

MWIR MCT Cooled Infrared Detector Customized 12um 640x512
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512/12μm||NETD||≤17mK (F2); ≤18mK (F4)|
|Spectral Range8~14μm||3.7~4.8μm MW||Operation Temperature||-45℃~+71℃|
640x512 MCT Cooled Infrared Detector,
MWIR Cooled Infrared Detector 12um,
Customized MWIR Infrared Detectors
15μM 640x512 MWIR Infrared Detector Cooled For Remote Monitoring System
Being one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). C615M is a 640×512 resolution, 15μm pixel size, MCT technology based mid wave infrared detector that could present clear images. Equipped with industry standard interfaces and RS058/RS046/LS734 cryocoolers, C615M is designed to meet various customer requirements of light weight, low power consumption, long life and high reliability. It is with the most popular 640x512/15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.
It can be widely used in many high end applications, such as Handheld Reconnaissance System, Remote Monitoring System, Search & Tracking System, Enhanced Flight Vision System, Electro-Optical Payload etc.
Sharp & Clear Imaging
• Good uniformity, effective pixel rate＞99.5%
• High thermal sensitivity
Guaranteed Continuous Supply
• Interchangeable standard interface
• Mass production, good consistency
Designed for Specific Applications
• Wavelength can be customized
• F number can be customized
• Mounting surface can be customized
• Multiple cryocooler available
|Spectral Range||3.7μm～4.8μm MW|
|Working Mode||Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Number of Output||4; Up to 10Mpixel/s per Output|
|Effective Pixel Rate||≥99.5%|
|Steady Power Consumption||≤6W@RS058
|Max Power Consumption||≤12W @ RS058
≤11W @ RS046
|Power Supply||RS058: 24V DC
RS046: 32V DC
|Cooling Time||≤6min @ RS058
≤5min30s @ RS046
|Weight||≤600g @ RS058
≤350g @ RS046
|Dimension (mm)||RS046: 122x46.3x82
|Working Temperature||-45°C ~ +71°C|
The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
