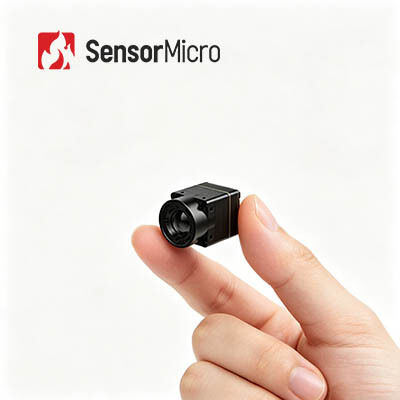

640x512 Resolution 8μm Pixel Size 30mK NETD Infrared Camera Module for Power Inspection and Industrial Diagnostics
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ROHS2.0/REACH |
| Model Number | iTL608 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Digital Frame Rate | 30/50Hz | Resolution | 640x512 / 8μm |
|---|---|---|---|
| Typical NETD | ≤30mK | Spectral Range | 8~14μm |
| Size (With 6mm Lens) | 13mm×13mm×18.3mm | Supply Voltage | 4-5.5V |
| Highlight | 12um Drone Infrared Camera Module,Inspection Drone Infrared Camera Module |
||
Product Description
640x512/8μm Infrared Camera Module for Electricity Power Inspection
Product Overview
The iTL608 is an uncooled thermal camera core designed for industrial inspections, technical diagnostics, and predictive maintenance. This long-wave infrared (LWIR) camera operates within the 8 to 14μm spectral range and integrates a 640x512/8μm wafer level package (WLP) infrared detector, delivering sharp, crisp images in a compact, lightweight design.
Specifically developed for forest firefighting, power maintenance, photovoltaic inspection, security monitoring, and wearable/portable devices.
Main Features
- Extreme Lightweight Design: Compact size of 13 × 13 × 18.3 mm and weight of 6.7 ±1.5 g (including 6mm lens) with high integration levels
- High Sensitivity, Precise Detection: 8μm ultra-small pixel size with 640 × 512 resolution for fine detail and clear images; typical NETD ≤ 30mK for reliable detection of subtle temperature differences
- Simplified Development, Fast Integration: Multiple optical lens options; supports MIPI/USB 2.0/BT.656 interfaces; RAW and YUV image data output with control via serial port/I2C
Product Specifications
| Model | iTL608 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 30/50Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 34Pin_Connector Interface: BP04SD-34-0065-R0 |
| Communication Interface | TTL-232/USB2.0/I2C |
| Digital Video Interface | MIPI/USB2.0/BT.656 |
| Supply Voltage | 4-5.5V |
| Typical Power Consumption | 0.4W |
| Mechanical | |
| Size (including lens) |
With 6mm lens: 13 × 13 × 18.3 mm (lens outer diameter Φ12.3 mm) With 8.7mm lens: 13 × 13 × 19.8 mm (lens outer diameter Φ15.6 mm) With 16.7mm lens: 13 × 13 × 27.9 mm (lens outer diameter Φ22.2 mm) With 30mm lens: 13 × 13 × 39 mm (lens outer diameter Φ36 mm) |
| Weight (including lens) |
6.7±1.5g (6mm lens) 7.5±1.5g (8.7mm lens) 17±1.5g (16.7mm lens) 42.7±1.5g (30mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | Fixed Focus Athermal: 6/8.7/16.7/30mm |
Industrial Applications
The iTL608 thermal camera core is suitable for forest firefighting, power maintenance, photovoltaic inspection, security monitoring, wearable devices, portable devices, and various industrial inspection applications.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs. We exist to empower people and systems to see beyond the surface—into the patterns, problems, and possibilities that lie beneath.
By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity. Our customer-first approach has driven our global expansion across security, firefighting, industrial inspection, medical care, machine vision, environmental monitoring, and carbon neutrality initiatives.
We are more than an infrared technology company. We are a community committed to building a sustainable, ethical, and human-centered future. Every pixel of innovation we create is a promise to protect, empower, and serve.
Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through infrared thermal imaging systems, displayed on monitors in grey level or pseudo color. This enables visualization of temperature distribution. False colors representing temperature differences make thermal images easier to analyze visually.
How many pseudo color options can SensorMicro thermal imaging modules offer?
SensorMicro thermal imaging modules offer 10 pseudo color options: White Hot, Lava, Ironbow, Hot Iron, Medical, Arctic, Rainbow1, Rainbow2, Red Hot, and White Hot.
