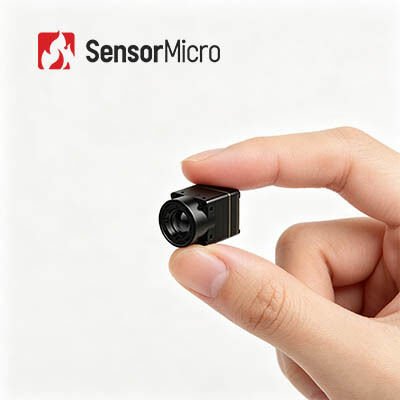

Compact LWIR Thermal Camera Core with 640x512 Resolution and 8μm Pixel Pitch for All-weather Security Monitoring

The iTL608 infrared thermal camera core represents the pinnacle of miniaturized high-precision thermal imaging technology. Breaking the boundaries of traditional product design, it achieves an ultra-compact 13×13×18.3mm form factor and an ultra-light 6.7g weight, realizing perfect balance of tiny size and powerful performance.

Built with premium VOx infrared detection chips and 8μm micro-precision imaging technology, it delivers 640×512 ultra-clear resolution and industry-leading ≤30mK thermal sensitivity, capturing subtle temperature differences with unparalleled accuracy. Intelligent image processing algorithms, fast responsive transmission, and ultra-wide temperature resistance endow the core with stable and reliable all-scenario adaptability.

Featuring diversified configuration options and highly compatible integration capabilities, the iTL608 empowers the iterative upgrading of handheld portable thermal devices, bringing high-efficiency and high-precision thermal imaging solutions to global security monitoring, industrial measurement, and night vision fields.

• Extreme Lightweight Design
  Compact size of 13 × 13 × 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens)
  Among the highest levels of integration in its class
• High Sensitivity, Precise Detection
  8μm ultra-small pixel size with 640 × 512 resolution, delivering fine detail and clear images
  Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
• Simplified Development, Fast Integration
  Multiple optical lens options available to meet diverse application requirements
  Supports multiple image output interfaces, including MIPI/USB 2.0/BT.656
  RAW and YUV image data output, with control via serial port/I2C

• Forest Firefighting
• Power Maintenance
• Photovoltaic Inspection
• Security Monitoring
• Wearable Devices
• Portable Devices

As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.

Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.

• White Hot
• Lava
• Ironbow
• Hot Iron
• Medical
• Arctic
• Rainbow1
• Rainbow2
• Red Hot
• White Hot

• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
