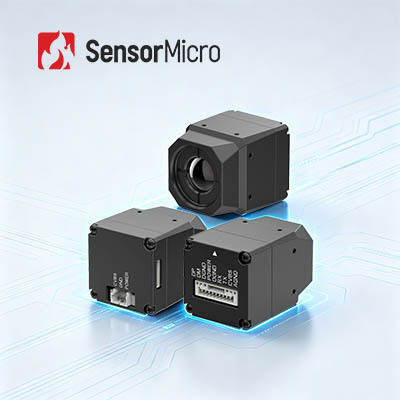

Uncooled LWIR Thermal Imaging Security Camera Module with 384x288 Resolution and Low Power Consumption in Compact Size

  • Uncooled LWIR Thermal Imaging Security Camera Module with 384x288 Resolution and Low Power Consumption in Compact Size
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO412
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Uncooled Camera Module Resolution 384x288 / 12μm
Frame Rate 25Hz/30Hz/50Hz NETD ≤30mK/F1.0/25℃
Steady Power Consumption ≤680mW@5V, 23±3℃ Weight 30.3±3g
Highlight

Thermal Imaging Security Camera 400x300

,

50Hz LWIR Thermal Imaging Security Camera

,

Uncooled LWIR Thermal Security Camera
Leave a Message
Product Description
Uncooled LWIR Thermal Imaging Security Camera Module 384x288
LWIR 384x288 Thermal Imaging Security Camera Module Uncooled

MICO412 is a thermal module specifically designed for fast integration into thermal security cameras. Consisting of a 384x288/12µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit, and unique image processing algorithm, the MICO412 infrared camera module ensures clear images, smooth quality, superior performance, and multiple lens options.

MICO412 thermal camera module provides various industry-standard interfaces for easy plug-in integration into OEM infrared surveillance cameras. We have successful thermal imaging solutions applied across numerous applications.

The MICO412 thermal core can be integrated into security cameras with thermal imaging capabilities from short to long distances. It is ideal for customers producing security and monitoring cameras who require high image quality and reliable performance.

Main Features
  • Low-cost and Energy-efficient Solution
    • Equipped with self-developed 384×288/12μm wafer-level infrared detector, offering clear cost advantage
    • Integrated with dedicated ASIC chip for high energy efficiency
  • Optimized SWaP
    • Ultra-compact size: only 22.2×22.2×27.2mm (excluding lens)
    • Lightweight: just 30.3±2g
    • Low power consumption: 680mW
  • Easy Development & Quick Integration
    • Provides native analog or digital video output, supporting CVBS/USB/MIPI standards—no additional development required
    • Easy mounting with minimal structural design effort
Product Specifications
Model MICO412
IR Detector Sensitive Material: VOx
Resolution: 384×288
Pixel Size: 12µm
NETD: ≤30mK/F1.0/25℃
Spectral Response: 8~14μm
Optical Lens Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0
FOV: 51°(H)×39°(V) | 28.4°(H)×21.5°(V) | 20°(H)×15°(V)
Type: Fixed Focus Athermal
First lens sealing/coating IP67
Image Processing Analog Video: PAL(default) / NTSC
Digital Video: USB/MIPI
Frame Rate: 25Hz/30Hz/50Hz
Start-up Time: ≤6s
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Pseudo Color 11 types - customizable
Electrical Interface Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface: CVBS | USB | MIPI
Power Supply: DC: 5V~24V
Steady Power Consumption ≤680mW@5V, 23±3℃
Dimension 22.2mm×22.2mm×27.2mm (L×W×H)
Weight 30.3±3g
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃～+85℃
Humidity: 5%~95%, non-condensing
Vibration: Random Vibration, 5.35grms, 3-axis
Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification RoHS2.0/Reach
Detection Range (8 pixels)
  • 99m (5'11" tall person)
  • 360m (4m×3m vehicle)
Industrial Applications

The MICO412 thermal camera module can be integrated into security cameras with clear image quality from short to long distances, including PTZ Cameras, Box Cameras, and Speed Dome Cameras.

About Us

Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.

Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.

Our Value: To create advanced infrared technology that makes the world a better place.

Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This allows obtaining the temperature distribution of objects. To make it easier for people to analyze thermal images visually, they are represented using false colors that indicate temperature differences.
How many pseudo colors can SensorMicro thermal imaging module offer?
The module offers multiple pseudo color options including: White Hot, Lava, Ironbow, Hot Iron, Medical, Arctic, Rainbow1, Rainbow2, Red Hot, and White Hot.
