Uncooled LWIR Thermal Imaging Security Camera Module 400x300
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | PLUG417 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Type | Uncooled Camera Module | Resolution | 400x300 / 17μm |
|---|---|---|---|
| Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz | NETD | ＜30mK |
| Typical Power Consumption | ＜1.1W | Weight | ≤77g |
| Highlight | Thermal Imaging Security Camera 400x300,50Hz LWIR Thermal Imaging Security Camera,Uncooled LWIR Thermal Security Camera |
||
Product Description

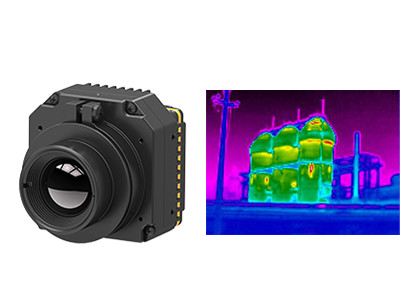

PLUG417 Infrared Module
LWIR 400x300 Thermal Imaging Security Camera Module Uncooled
Product Description
PLUG417 is a kind of thermal module that is specially used for fast integration into thermal security camera. Consisted of 400x300 / 17µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG417 infrared camera module ensures clear image, smooth quality, superior performance and multiple lenses available.
PLUG417 IR thermal camera module provides a variety of industry common interfaces for the easy plug-in and integration into OME infrared surveillance cameras. We have some successful thermal imaging solutions to be applied into many applications.
The PLUG417 thermal core can be integrated into security camera with temperature monitoring from short distance to ultra distance. It is suitable for customers who produce security and monitoring camera with pursuit of high requirements for image and temperature measurement, strong and reliable performance.
Main Features
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
Product Specifications
| Model | PLUG417 |
| IR Detector Performance | |
| Resolution | 400x300 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | <30mk |
| Image Processing | |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz |
| Start-up Time | <10s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4.5~6V |
| Typical Power Consumption | <1.1W |
| Physical Characteristics | |
| Dimension (mm) | 44.5mmx44.5mmx36.6mm |
| Weight | ≤77g |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Optical Zoom: 30-150mm |
Industrial Applications
The PLUG417 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
About Us
Our Vision:To push the boundaries of sensing and transform the way people connect with the world around them.
Our Mission:To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.
Our Value:To create advanced infrared technology that makes the world a better place.
FAQs
1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
2. How many pseudo color can SensorMicro thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
