|Spectral Range:||8~14μm||Pixel Pitch:||12μm|
|Typical NETD:||≤40mK||Frame Rate:||30Hz|

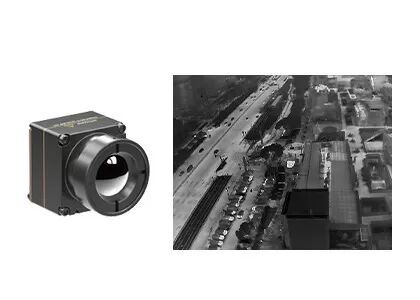

LWIR Drone Thermal Camera 640x512,
Firefighting LWIR Drone Thermal Camera,
RoHS Uncooled Lwir Camera Module
Fast Integration Drone Thermal Camera with Uncooled Infrared Thermal Detector 640x512 12μm
The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.
iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W
Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control
|IR Detector Performance|
|Sensitive Material||Vanadium Oxide|
|Image Algorithm||Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
|Image Display||Black Hot/White Hot/Pseudo Color|
|ICC Software||Module Control & Video Display|
|Standard External Interface||30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)|
|USB Expansion Board||Type-C|
|Digital Video Interface||CMOS8/USB2.0|
|Supply Voltage||3.3V±0.1V VDC|
|Typical Power Consumption||0.7W|
|Operating Temperature Range||-10°C~+50°C|
|Temperature Measurement Range||-20°C~+150°C, 0°C~550°C; Support Customization and Expansion|
|Temperature Measurement Accuracy||Greater of ±3°C or ±3% (@23℃±3℃)|
|Regional Temperature Measurement||Support Maximum, Minimum and Average Value of the Output Regional Temperature|
|SDK||Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Size (mm)||21×22.3×27.3 (With 9.1mm Lens)|
|Weight||20.8g±1.5g (With 9.1mm Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
1. About metal packaging infrared detector
Metal packaging uses metal tube shell, thermoelectric cooler (TEC) and columnar getter. The TEC plays an important role of stabilizing the working temperature so that the infrared detector works at room temperature, thereby improving the ability of thermal imaging sensors to adapt to extreme environments, such as heavy fog, rain and snow etc.
But the disadvantage is that the cost is too high, accounting for more than 60% of the total cost of the entire uncooled products production, and causing a long production cycle. Such packaging method is for high-end applications.
