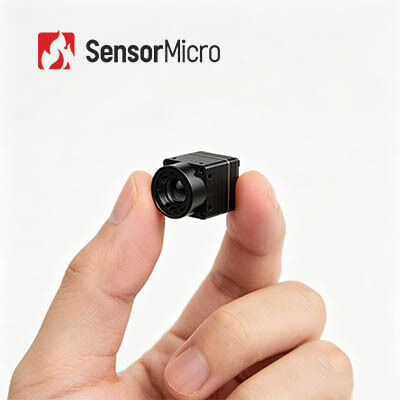

Fast Integration Uncooled Thermal Camera Core with 640x512 Resolution and 8μm Pixel Pitch for ≤30mK NETD
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iTL608 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Pixel Pitch | 8μm | Typical NETD | ≤30mK |
|---|---|---|---|
| Resolution | 640x512 | Power Consumption | 0.4W |
| Spectral Range | 8~14μm | Frame Rate | 30/50Hz |
| Highlight | Fast Integration Drone Thermal Camera,Uncooled Infrared Detector Drone Thermal Camera,0.7W Drone Thermal Camera |
||
Product Description
Fast Integration Thermal Camera Core with Uncooled Infrared Detector 640x512 8μm
Product Overview
Simplify your thermal imaging product development with the highly adaptable iTL608 infrared core. Designed to lower technical barriers for secondary integration, this compact core supports multiple configurable optical lens options to match different application scenarios and focal length demands.
It features comprehensive mainstream output protocols, including MIPI, USB 2.0 and BT.656, with flexible RAW and YUV dual image data output modes. Users can easily implement device parameter configuration and function control via serial port or I2C communication.
Beyond outstanding compatibility, it maintains elite industrial-grade performance: ultra-light miniaturized structure, 640*512 high-resolution imaging, ≤30mK sensitive detection, fast startup, intelligent image optimization and wide-temperature stable operation. It is the most cost-effective plug-and-play core for handheld thermal devices, small surveillance equipment and portable night vision tools.
Main Features
- Extreme Lightweight Design - Compact size of 13 * 13 * 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens) - Among the highest levels of integration in its class
- High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 640 * 512 resolution, delivering fine detail and clear images - Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
- Simplified Development, Fast Integration - Multiple optical lens options available to meet diverse application requirements - Supports multiple image output interfaces, including MIPI/USB 2.0/BT.656 - RAW and YUV image data output, with control via serial port/I2C
Product Specifications
| Model | iTL608 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640*512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 30/50Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 34Pin_Connector Interface: BP04SD-34-0065-R0 |
| Communication Interface | TTL-232/USB2.0/I2C |
| Digital Video Interface | MIPI/USB2.0/BT.656 |
| Supply Voltage | 4-5.5V |
| Typical Power Consumption | 0.4W |
| Mechanical | |
| Size (including lens) | With 6mm lens: 13 * 13 * 18.3 mm (lens outer diameter Φ12.3 mm) With 8.7mm lens: 13 * 13 * 19.8 mm (lens outer diameter Φ15.6 mm) With 16.7mm lens: 13 * 13 * 27.9 mm (lens outer diameter Φ22.2 mm) With 30mm lens: 13 * 13 * 39 mm (lens outer diameter Φ36 mm) |
| Weight (including lens) | 6.7±1.5g (6mm lens) 7.5±1.5g (8.7mm lens) 17±1.5g (16.7mm lens) 42.7±1.5g (30mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | Fixed Focus Athermal: 6/8.7/16.7/30mm |
Industrial Applications
The iTL608 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
Company Profile
Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.
Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.
Our Value: To create advanced infrared technology that makes the world a better place.
Frequently Asked Questions
1. What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
2. What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
3. What is SWaP3?
SWaP3 refers to size, weight, power, performance and price. It indicates the technology trend of infrared industry.
