Typical Uncooled Thermal Camera Module 640x512 30Hz NETD 40mk For Drones

Uncooled 640x512 12μm Thermal Camera Module For Drones Typical NETD≤40mk

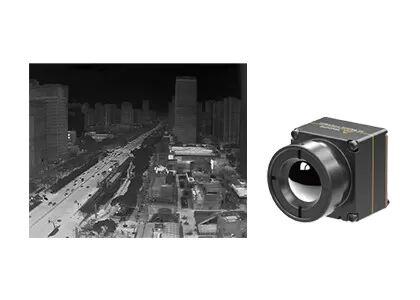

The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.

iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.



Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W

Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement

Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control



The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.




1. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.

2. Pseudo Color - Lava
In the Lava pseudo color, the white indicates high temperature and dark red indicates low temperature. Its entire palette uses warm colors. For ultra-high temperature targets, it is more in line with human visual viewing.

3. What is DRI Range?
It is a means of measuring the distance at which an infrared detector can produce an image of specific target and can be divided into detection range, recognition range, identification range.
D (Detection): ability to distinguish an object from the background
R (Recognition): ability to classify the object class (animal, human, vehicle, boat …)
I (Identification): ability to describe the object in details (a man with a hat, a deer, a Jeep …)
According to Johnson's criteria, when the probability of target detail visible at the DRI distance is 50%, the minimum number line pairs of the target is 1:3:6 (or 1:4:8), and the corresponding minimum number of pixels is 2:6:12 (or 2:8:16).
Assuming that the target diameter is H, the focal length is f, the pixel size is d, and the number of line pairs is n, then the view distance L=H×f/(2n×d)
