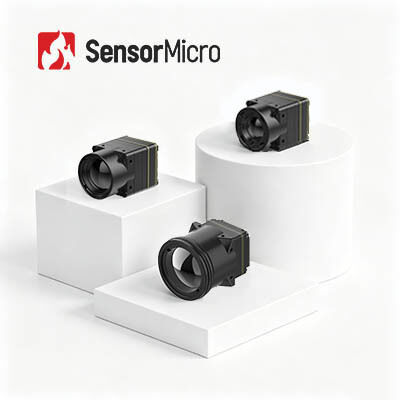

Tiny Uncooled Thermal Camera Module with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Sensitivity

  • Tiny Uncooled Thermal Camera Module with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Sensitivity
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL608
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 Power Consumption 0.4W
Frame Rate 30/50Hz Spectral Range 8~14μm
Typical NETD ≤30mK Pixel Pitch 8μm
Highlight

Typical Uncooled Thermal Camera Module

,

Drones Uncooled Thermal Camera Module

,

Drone Thermal Camera 640x512
Leave a Message
Product Description
Tiny Uncooled Thermal Camera Module 640x512/8μm NETD 30mk
Product Overview

Tiny in size, mighty in performance — meet the iTL608 miniature thermal camera core! This thumb-sized thermal imaging module weighs just 6.7 grams, featuring ultra-compact dimensions and top-tier integration for portable device embedding. Packing a professional VOx detector, 640×512 crisp resolution and ≤30mK ultra-high sensitivity, it spots subtle temperature differences invisible to the naked eye. Enjoy fast 6s startup, smooth dual frame rates, and intelligent NUC & 3DNR image enhancement for flawless thermal visuals. Built tough to work steadily from -40°C to +70°C, it supports versatile interface options and flexible development, perfectly fitting handheld thermal imagers, security monitoring and all-day night vision applications.

Main Features
Extreme Lightweight Design
  • Compact size of 13 × 13 × 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens)
  • Among the highest levels of integration in its class
High Sensitivity, Precise Detection
  • 8μm ultra-small pixel size with 640 × 512 resolution, delivering fine detail and clear images
  • Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
Simplified Development, Fast Integration
  • Multiple optical lens options available to meet diverse application requirements
  • Supports multiple image output interfaces, including MIPI/USB 2.0/BT.656
  • RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL608
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 30/50Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
Software Module Control & Video Display
Electrical
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232/USB2.0/I2C
Digital Video Interface MIPI/USB2.0/BT.656
Supply Voltage 4-5.5V
Typical Power Consumption 0.4W
Mechanical
Size (including lens) With 6mm lens: 13 × 13 × 18.3 mm (lens outer diameter Φ12.3 mm)
With 8.7mm lens: 13 × 13 × 19.8 mm (lens outer diameter Φ15.6 mm)
With 16.7mm lens: 13 × 13 × 27.9 mm (lens outer diameter Φ22.2 mm)
With 30mm lens: 13 × 13 × 39 mm (lens outer diameter Φ36 mm)
Weight (including lens) 6.7±1.5g (6mm lens)
7.5±1.5g (8.7mm lens)
17±1.5g (16.7mm lens)
42.7±1.5g (30mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 6/8.7/16.7/30mm
Industrial Applications
The iTL608 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
One-Stop Thermal Imaging Solutions
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available
  • Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery
  • Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.

2. Pseudo Color - Lava

In the Lava pseudo color, the white indicates high temperature and dark red indicates low temperature. Its entire palette uses warm colors. For ultra-high temperature targets, it is more in line with human visual viewing.

3. What is DRI Range?

It is a means of measuring the distance at which an infrared detector can produce an image of specific target and can be divided into detection range, recognition range, identification range.

D (Detection): ability to distinguish an object from the background
R (Recognition): ability to classify the object class (animal, human, vehicle, boat …)
I (Identification): ability to describe the object in details (a man with a hat, a deer, a Jeep …)

According to Johnson's criteria, when the probability of target detail visible at the DRI distance is 50%, the minimum number line pairs of the target is 1:3:6 (or 1:4:8), and the corresponding minimum number of pixels is 2:6:12 (or 2:8:16).

Assuming that the target diameter is H, the focal length is f, the pixel size is d, and the number of line pairs is n, then the view distance L=H×f/(2n×d)
