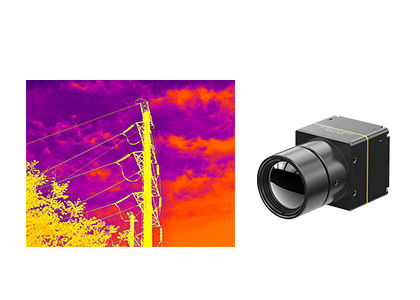

TWIN612 Thermal Imaging Module


Uncooled LWIR 640x512/ 12μm Thermal Camera Module with Clear Thermal Imaging


Product Description



TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD<40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.



The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.



Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.



Main Features



- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W



Product Specifications



Model TWIN612/R
IR Detector Performance
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD <40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3D/2D/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Dimension (mm) 25.4×25.4×35 (Without Lens)
Weight 25g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optics
Optional Lens Fixed Athermal: 13mm



Industrial Applications


The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
