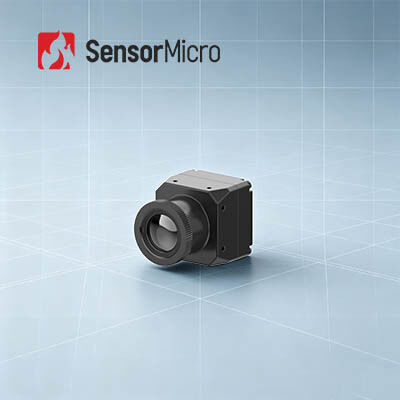

Ultra Compact Uncooled Thermal Module with 640×512 Resolution and 8μm Pixel Size for High-Quality Imaging
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | MICO608 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 /8μm | NETD | ≤30mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Size (mm) | 22.2×22.2×23.9 (With 6mm Lens) |
| Digital Video | USB /MIPI | Analog Video | PAL(default) / NTSC |
| Highlight | Uncooled Thermal Module With 9.1mm Lens,Uncooled Thermal Module With 13mm Lens,Thermal Camera Module With 19mm Lens |
||
Product Description
Ultra Compact Uncooled Thermal Module 640 × 512/8μm
Product Overview
MICO608 is an ultra-compact thermal core powered by the ApexCore 640 × 512/8μm infrared detector. It integrates a high-performance image processing board, multiple lens options, and a robust structural design into a compact package. Supporting both analog and digital video outputs, it enables seamless integration with backend platforms to deliver stable, high-quality thermal imaging with exceptional system flexibility.
Optimized for SWaP (Size, Weight, and Power), MICO608 combines a compact footprint, lightweight design, and low power consumption without compromising performance. It is well suited for security and surveillance, industrial temperature measurement, night vision, and embedded system integration where compactness and reliability are essential.
Main Features
- Mainstream Compatibility, Cost-Effective
- Equipped with ApexCore 640×512/8μm infrared detector, delivering clear thermal imaging with outstanding cost-performance
- Integrated with a dedicated ASIC chip for high energy efficiency
- Optimized SWaP Design
- Sectional dimension: only 22.2×22.2×23.9mm (including a 6mm lens)
- Weighing just 17±1.5g
- Low power consumption: 680mW
- Easy Development & Quick Integration
- Native analog video or digital video output, supporting both CVBS /USB/MIPI standards—no additional development required
- Easy mounting with minimal structural design effort
Product Specifications
| Model | MICO608 |
|---|---|
| IR Detector | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 8µm |
| NETD | ≤30mK/F1.0/25℃ |
| Spectral Response | 8~14μm |
| Optical Lens | |
| Focus/F# | 3.2/F1.0 | 6mm/F1.0 | 8.7mm/F1.0 |
| FOV | 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V) |
| Detection Range (8 pixels) | 99m (5'11" tall person) 360m (4m×3m vehicle) |
| Type | Fixed Focus Athermal |
| First lens sealing/coating | IP67 |
| Image Processing | |
| Analog Video | PAL(default) / NTSC |
| Digital Video | USB / MIPI |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | ≤6s |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Pseudo Color | 11 types - customizable |
| Electrical Interface | |
| Standard External Interface | 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51) |
| Video Interface | CVBS | USB | MIPI |
| Power Supply | |
| Supply Voltage | DC: 5V~24V |
| Steady Power Consumption | ≤680mW@5V, 23±3℃ |
| Mechanical | |
| Size | 22.2mm×22.2mm×23.9mm (including a 6mm lens) |
| Weight | 17±1.5g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Certification | RoHS2.0/Reach |
Industrial Applications
The MICO608 thermal module can be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, ADAS, and more.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
