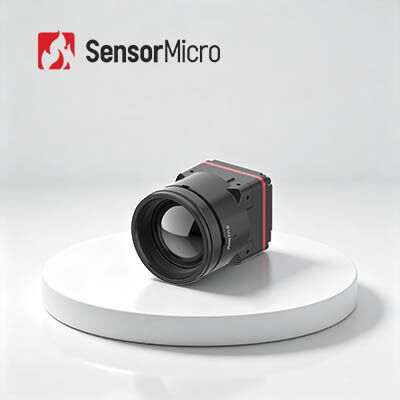

1280x1024/8μm Ultra-Miniature Uncooled LWIR Thermal Imaging Module
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iTL1208 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024/8μm | NETD | ≤30mK |
|---|---|---|---|
| Frame Rate | 25/30Hz | Spectral Range | 8~14μm |
| Typical Power Consumption | 1W | Supply Voltage | 4.5-5.5V |
| Highlight | 1280x1024 Thermal Imaging Module,Surveillance Camera Uncooled Thermal Module,1280x1024 Uncooled Thermal Module |
||
Product Description
1280x1024/8μm Ultra-Miniature Uncooled LWIR Thermal Imaging Module
Product Description
The iTL1208 is the world’s first 8μm megapixel infrared camera core engineered for superior SWaP optimization and next-generation thermal imaging systems. Equipped with the advanced ApexCore 1280×1024/8μm super infrared detector, this compact thermal camera core delivers true megapixel high-definition thermal imagery with ultra-fine 8μm pixel pitch, enabling exceptional integration density for compact device designs. Boasting miniaturized dimensions of 22.6 × 22.6 × 34.5 mm and a lightweight body of 35.7±2g (with 12mm lens), the iTL1208 infrared camera module achieves powerful thermal performance while minimizing size, weight, and power consumption. With only 1W low power draw, germanium-free chalcogenide optics, and flexible MIPI CSI output supporting RAW and YUV data, this industrial infrared camera core ensures fast, seamless integration for handheld thermal devices and mobile imaging platforms.
Main Features
8μm Megapixel Breakthrough
• World's first 8μm megapixel thermal camera core
• Powered by the ApexCore 1280×1024/8μm super infrared detector, balancing high resolution with ultra-compact integration.
At the Forefront of SWaP Performance
• Measures only 22.6×22.6×34.5 mm, weighs 35.7±2g (including a 12mm lens), and consumes just 1W
• Breaking the size barrier for megapixel thermal imaging
Germanium-Free Optics, Fast Integration
• Germanium-free chalcogenide optics with multiple lens options for diverse application requirements.
• MIPI CSI image output interface with RAW and YUV data output for simplified system integration.
Product Specifications
| Model | iTL1208 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25/30Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| PC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 34Pin_Connector Interface: BP04SD-34-0065-R0 |
| Communication Interface | TTL-232/I2C |
| Digital Video Interface | MIPI-CSI |
| Supply Voltage | 4.5-5.5V |
| Typical Power Consumption | 1W |
| Mechanical | |
| Size(including lens) | With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm) With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm) With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameterΦ26.6mm) With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm) With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm) With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm) |
| Weight (including lens) | 85.5±4.5g (With 5mm Lens) 70.5±3.6g (With 10mm Lens) 35.7±2g (With 12mm Lens) 40.7±2.1g (With 17mm Lens) 71.0±3.6g (With 25mm Lens) 110±5.5g (With 35mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, IImpact Direction 3 Axis, 6 Direction |
| Certification | ROHS2.0/REACH |
| Optical Lens | Fixed Focus Athermal: 5/10/12/17/25/35mm |
Industrial Applications
The iTL1208 thermal imaging module is widely used in various industries such as Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
Our Strengths
Diversified Product Portfolio
Deep Technical Expertise
Rigorous Reliability Validation Ensures Quality Assurance
Focused on Innovation and Practical Implementation in Infrared Sensing
Professional Technical Support and Joint Development Services
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.
2. What is the advantage of infrared thermal imaging?
--- See through total darkness;
--- Identification under camouflage;
--- Long range detection;
--- Heat distribution detection;
--- Non-contact temperature measurement;
--- Occupation awareness
3. What is the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
