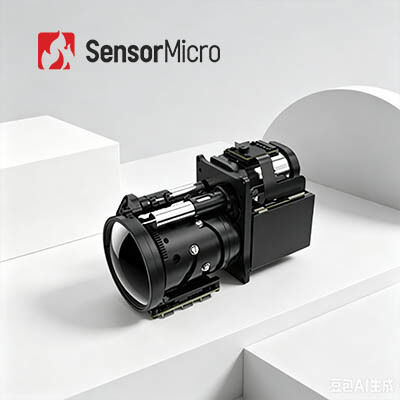

High Operation Temperature 640x512 15μm MWIR Cooled Infrared Camera Module for Long-Range Surveillance
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Pixel Pitch | 15μm |
|---|---|---|---|
| IR Detector NETD(23℃) | 20mK(F4) | Spectral Range | 3.7~4.8μm MW |
| Size(mm) | 71×55×84 | Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Highlight | MWIR Small Camera Module,MCT Small Camera Module,Small Camera Module 1280x1024 |
||
Product Description
High Operation Temperature 640x512 15μm MWIR Cooled Infrared Camera Module
Product Overview
The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables not only high-quality and stable imaging, but also compact size, lightweight design, and low power consumption, delivering optimized SWaP performance for versatile applications. With broad compatibility across multiple digital video interfaces and easy secondary development, it is suitable for handheld devices, mobile payloads, and long-duration monitoring, meeting stringent requirements for compact size, energy efficiency, and long-range detection in various infrared integration scenarios.
Main Features
- Mainstream FPA, Clear Imaging
- Developed based on a 640×512/15μm large-format HOT MWIR cooled infrared detector, offering excellent versatility
- Equipped with next-generation image processing algorithms, including DRC, 2D/3D noise reduction, and edge enhancement (EE), delivering clearer images
- HOT Technology Leading SWaP Optimization
- Supports high-temperature operation up to 150K, with cooling time ≤ 3min30s
- Compact size: 71×55×84 mm, weight: 350g, power consumption: 7W
- Rich Interfaces, Easy Integration
- Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
- Flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC615HMG |
|---|---|
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Cryocooler | RS058 |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤7W |
| Cooling Time(23℃) | ≤3min30s |
| Size(mm) | 71×55×84 |
| Weight(g) | ≤350 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5 110~1100mm/F5.5 15~300mm/F4 23~450mm/F4 |
Industrial Applications
The GAVIN GC615HMG thermal imaging module is widely used in NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research
Standardized Service
Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (-273℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
2. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
3. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
