Uncooled LWIR Thermal Imaging Module 384x288/17μm with Thermography and ≤30mK NETD for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN417RG3 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 384x288 / 17μm | NETD | ≤30mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Digital Frame Rate | 25/30/50Hz |
| Typical Power Consumption | 0.65W | Supply Voltage | 4.5~5.5V |
| Highlight | LWIR Thermal Imaging Sensor Module,Uncooled Thermal Imaging Sensor Module,30mK Thermal Imaging Sensor Module |
||
Product Description

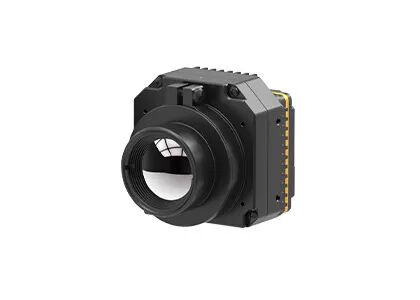

Uncooled LWIR Thermal Imaging Module 384x288/17μm with Thermography
Product Overview
COIN417RG3 is one of the COIN-R series uncooled thermal IR camera modules developed by SensorMicro. It consists of 384x288 / 17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
This uncooled infrared thermal imaging module is applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable to meet specific industrial thermography requirements. Its high precision, stability and multiple standard interfaces accommodate different integration needs.
The COIN417RG3 infrared camera module can be widely used in infrared thermal imaging applications. Its accuracy ensures precise measurements, while rapid integration, short secondary development cycle and affordable pricing make it an ideal choice for OEM customers.
Main Features
- Comprehensive Features, Cost-Effective
- Developed based on cost-effective uncooled IR detectors
- Integrated with advanced image processing algorithms to enhance image quality
- High temperature measurement accuracy up to ±2°C or ±2%, supporting temperature ranges of -20°C to 150°C and 100℃ to 550°C, customizable for extended ranges
- Flexible Extension, Fast Integration
- Multiple optical lens options available to meet various application needs
- Supports multiple output modes including USB2.0/DVP/LVDS/BT.656
- Outputs RAW/YUV image data, with serial port control
Product Specifications
| Model | COIN417RG3 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 384*288 |
| Pixel Size | 17μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50Pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Temperature Measurement | |
| Operating Temperature | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~+150℃, 100℃~+550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Partial Temperature Measurement | Support output maximum, minimum and average value of temperature measurement areas |
| SDK | Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Mechanical | |
| Bare Core Size(mm) | 25.4*25.4*16.5 |
| Bare Core Weight(g) | 16.6±1 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN417RG3 thermal camera module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS etc.
