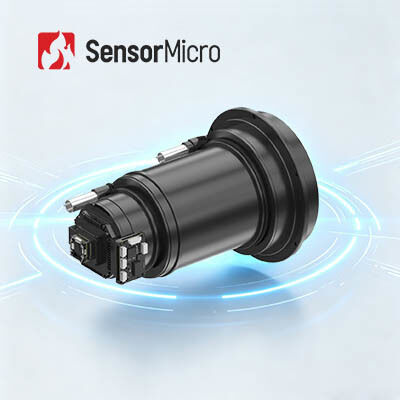

VOx Uncooled Thermal Camera Module with 1280x1024 Resolution and Shutterless Design for High-Definition Surveillance

  • VOx Uncooled Thermal Camera Module with 1280x1024 Resolution and Shutterless Design for High-Definition Surveillance
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25Hz/30Hz/50Hz
Image Direction Horizontal/Vertical/Diagonal Communication Interface TTL-232/USB
Highlight

1280x1024 Long Wave Infrared Camera

,

12μm Long Wave Infrared Camera Core
Leave a Message
Product Description
VOx Uncooled LWIR 1280x1024/12μm Thermal Camera Module for Surveillance
Product Overview

Developed with a 1280×1024/12μm ceramic-packaging detector, this megapixel thermal imaging camera core delivers superior performance with wider field of view, extended detection range, and enhanced target imaging detail compared to standard products. The shutterless design eliminates image stuttering and noise during observation.

The iSE1212 supports advanced features including super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and multiple video interfaces. With various lens options for easy integration, it provides exceptional imaging performance for high-end infrared applications.

Key Features
  • High-Definition Imaging: Megapixel thermal imaging with smooth, lag-free performance, wider field of view, larger angle coverage, and extended detection range
  • Shutterless Operation: No shutter calibration required, eliminating image stuttering and enabling silent operation to avoid target detection
  • Advanced Functionality: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
  • Easy Integration: Compatible with wide range of optical lenses and extended components for flexible system integration and secondary development
Technical Specifications
Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4(Button functions customizable)
OLED Driving
Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software
Computer Software Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 68×69×30.2
Bare Core Weight(g) 65±3 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm
Shutter Components Optional
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration,, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 infrared imaging module is widely used in:

  • Industrial Vision
  • Firefighting and Rescue
  • Security Surveillance
  • Outdoor Observation
  • Machine Vision
  • Consumer Electronics
Core Technology

Strong R&D Capabilities: SensorMicro is one of China's earliest companies researching antimonide-based Type-II superlattice (T2SL) cooled infrared detectors, pioneering mass production and engineering application with proven capabilities in R&D and manufacturing of high-end advanced devices.

Leading Technological Achievements: Leads the development trend of SWaP³ technology, far ahead in large-format array, small pixel, high-temperature operation, miniaturization, high performance, and low power consumption.

Complete Supply Chain: From chip design and cooler manufacturing to high vacuum packaging processes, achieving stable supply chain, reliable quality, and significant cost advantages with integrated technology.

Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?

Our thermal camera modules are widely used in many industries including:

  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
