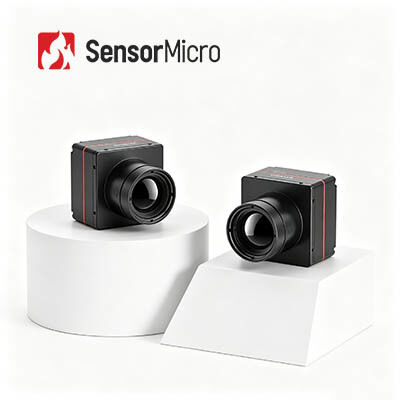

1280x1024 Uncooled LWIR Thermal Camera Core with 12μm Pixel Pitch and 30~180mm Lens
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Model Number | iSE1212 |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Product Details
| Digital Frame Rate | 25Hz/30Hz/50Hz | Typical NETD | ≤30mK |
|---|---|---|---|
| Pixel Pitch | 12μm | Resolution | 1280×1024 |
| Sensor | Uncooled Focal Plane Arrays | Spectral Range | 8μm To 14μm |
| Highlight | 12μm Pixel Pitch LWIR Camera,USB3.0 LWIR Camera,GigE LWIR Camera |
||
Product Description
1280x1024/12um Uncooled LWIR Thermal Camera Core with 30~180mm Lens
Product Overview
The iSE1212 uncooled thermal camera core is a high-performance thermal module designed for commercial and industrial applications. Featuring a 1280x1024/12μm resolution microbolometer with a spectral range of 8μm to 14μm, this infrared thermal module is ideal for detecting heat sources in both close-up and long-range environments. Available with fixed focus athermal lens, motorized lens, and continuous zoom lens options, the iSE1212 delivers unbeatable performance in applications requiring pinpoint accuracy and the ability to detect subtle temperature differences.
Key Features
- High-Definition Imaging with Smooth Visuals: Delivers megapixel thermal imaging with smooth, lag-free performance, wider field of view, larger angle coverage, longer detection range, and enhanced detail
- Shutterless Operation for Silent Performance: No shutter calibration required during use, eliminating image stuttering common in traditional designs; silent operation helps avoid detection by targets
- Feature-Rich and Integration-Friendly: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays; compatible with a wide range of optical lenses and extended components for easy secondary development and flexible system integration
Technical Specifications
| Model | iSE1212 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 1280×1024 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Effective Pixels | 1280×1024 | |
| Digital Frame Rate | 25Hz/30Hz/50Hz | |
| Start-up Time | 7s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Reticle | Supported | |
| System Function | ||
| Sleep Mode | Supported | |
| Menu Setting | Customizable | |
| Menu Language | Chinese / English | |
| Offset calibration | Supported | |
| Keypads | ≥4(Button functions customizable) | |
|
OLED Driving
|
Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
|
|
| PC Software | ||
| Computer Software | Module Control & Video Display | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB | |
| Digital Video Interface | DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE | |
| Extension Components | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 1.2W@25Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 38×39×28 | 68×69×30.2 |
| Bare Core Weight(g) | 65±3 | 88.5±3 |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm |
| Shutter Components | Optional | |
| Protection Level | IP67(Front Lens) | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | 5.35g, Random Vibration,, 3-axis | |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms |
| Certification | ROHS2.0/REACH | |
Applications
The iSE1212 thermal camera core is a powerful thermal module designed to meet the needs of a wide range of applications and scenarios. It is ideal for applications requiring reliable and accurate thermal imaging solutions, including:
- Industrial Vision
- Firefighting and Rescue
- Security Surveillance
- Outdoor Observation
- Machine Vision
- Consumer Electronics
Technical Support & Services
- 24/7 access to technical support resources via online customer portal
- Phone and email support
- Live chat support
- Access to product documentation, knowledge base, and FAQs
- Software and firmware updates
- Hardware and component repairs
- On-site service and maintenance
- Training and consulting
- Support for third-party accessories
