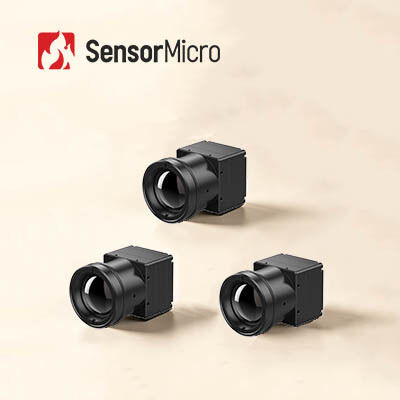

Uncooled LWIR Thermal Camera Core with Fixed Focus Athermal Lens 384x288 Resolution and 8μm to 14μm Spectral Range
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Model Number | COIN417G3 |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Product Details
| Spectral Range | 8μm To 14μm | Frame Rate | 25/30/50Hz |
|---|---|---|---|
| Fixed Focus Athermal | 4.8/7/9.1/13/19/25/35mm | Analog Video | PAL/NTSC |
| Sensor | Uncooled Focal Plane Arrays | Typical NETD | ≤30mK/F1.0/25℃ |
| Highlight | Uncooled LWIR Thermal Camera Core,24mm LWIR Thermal Camera Core,19mm LWIR Thermal Camera Core |
||
Product Description
Uncooled LWIR Thermal Camera Core with Fixed Focus Athermal Lens 19mm/24mm
Product Overview
COIN417G3 is an advanced 384×288 infrared camera core powered by 17μm microbolometer array technology, designed for applications requiring high sensitivity and excellent image quality. It offers a spectral range from 8μm to 14μm with frame rates of 25/30/50Hz, providing a reliable and affordable thermal imaging solution that meets higher standards of accuracy and performance.
Key Features
- Comprehensive Functionality, Cost-Effective Design
Developed using high cost-performance wafer-level packaging detector with integrated advanced image processing algorithms - Outstanding Performance, Superior Imaging
High sensitivity with typical NETD≤30mK and next-generation image algorithms for clearer, sharper thermal images - Flexible Extension, Rapid Integration
Multiple optical lens options, supports USB2.0/DVP/LVDS/BT.656 interfaces, outputs RAW/YUV image data with serial port control
Technical Specifications
| Model | COIN417G3 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50Pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Bare Core Size(mm) | 25.4mm×25.4mm×16.5mm |
| Bare Core Weight(g) | 16.6±1 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm |
| Protection Level | IP67(Front Lens) |
Applications
COIN417G3 thermal camera core is widely used across multiple industries including Industrial Vision, Security Monitoring, Firefighting & Rescue, Outdoors, Machine Vision, and ADAS. It serves as an ideal tool for troubleshooting, preventive maintenance, and monitoring in hazardous environments.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. We share professional application experience and provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands.
Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across industries. SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products, with volume production capabilities to meet growing market demands.
Technical Support & Services
We provide comprehensive technical support and services for thermal camera cores. Our expert team is available to answer questions and provide assistance for any issues encountered.
Support options include online troubleshooting, phone and email support, and on-site service. We also offer extensive resources including user manuals, FAQs, and product documentation.
We are committed to delivering the highest level of customer service and ensuring positive experiences with our thermal camera core products.
