384x288 Resolution Microbolometer Uncooled Thermal Imaging Module with 17μm Pixel Size and ≤30mK NETD

  • 384x288 Resolution Microbolometer Uncooled Thermal Imaging Module with 17μm Pixel Size and ≤30mK NETD
Place of Origin China
Brand Name SensorMicro
Model Number COIN417G3
Minimum Order Quantity 1
Price Negotiable
Payment Terms T/T
Product Details
Typical NETD ≤30mK/F1.0/25℃ Spectral Range 8μm ~ 14μm
Pixel Size 17μm Resolution 384×288
Working Voltage 4.5~5.5V Frame Rate 25/30/50Hz
Highlight

Manual Focus Thermal Imaging Module

,

640x512 Resolution Thermal Imaging Module

,

Microbolometer Thermal Imaging Module
Leave a Message
Product Description

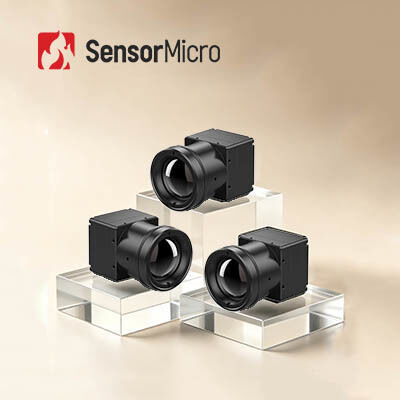

384x288 Resolution Microbolometer Uncooled Thermal Imaging Module
Product Overview

The COIN417G3 is a high-performance uncooled long-wave infrared (LWIR) camera core built around a focal plane array infrared detector to deliver reliable thermal imaging capabilities. Equipped with an advanced uncooled focal plane array sensor, it adopts a 384×288 resolution infrared detector with 17μm wafer-level packaging, covering a spectral response range from 8μm to 14μm.

A full lineup of fixed-focus athermal lenses is available for selection, including 4.8mm, 7mm, 9.1mm, 13mm, 19mm, 25mm and 35mm.

With a compact size of 25.4mm×25.4mm×16.5mm and weight of 16.6g, this thermal module is perfectly suited for projects demanding minimized size and weight.

Key Features
  • Comprehensive Functionality, Cost-Effective Design
    • Developed using a high cost-performance wafer-level packaging detector
    • Integrated with advanced image processing algorithms to enhance image quality
  • Outstanding Performance, Superior Imaging
    • High sensitivity with a typical NETD≤30mK
    • Next-generation image algorithms deliver clearer, sharper thermal images
  • Flexible Extension, Rapid Integration
    • Multiple optical lens options available to suit diverse application scenarios
    • Supports USB2.0/DVP/LVDS/BT.656 image output interfaces
    • Outputs RAW/YUV image data with serial port control
Technical Specifications
Model COIN417G3
IR Detectors Indicators
Sensitive Material VOx
Resolution 384×288
Pixel Size 17μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK/F1.0/25℃
Image Processing
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software ICC Software - Module Control & Video Display
Electrical
Standard External Interface 50Pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Mechanical
Bare Core Size 25.4mm×25.4mm×16.5mm
Bare Core Weight 16.6±1g
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm
Protection Level IP67 (Front Lens)
Applications

The COIN417G3 thermal camera core is a reliable and cost-effective solution for various applications, including:

  • Industrial Vision
  • Security Monitoring
  • Firefighting & Rescue
  • Outdoor Monitoring
  • Machine Vision
  • Advanced Driver-Assistance Systems (ADAS)
