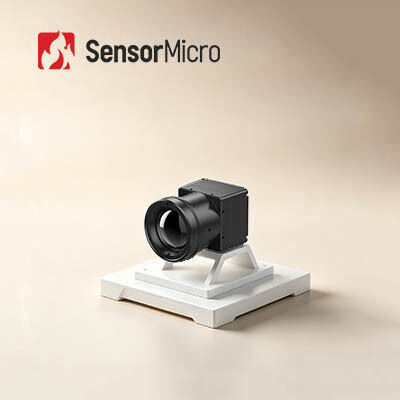

384×288 Resolution Thermal Camera Core with 8μm to 14μm Spectral Range and Uncooled Focal Plane Arrays

  • 384×288 Resolution Thermal Camera Core with 8μm to 14μm Spectral Range and Uncooled Focal Plane Arrays
Place of Origin China
Brand Name SensorMicro
Model Number COIN417G3
Minimum Order Quantity 1
Price Negotiable
Payment Terms T/T
Product Details
Lens Type Fixed Focus Athermal Resolution 384×288
Pixel Pitch 17μm Sensor Uncooled Focal Plane Arrays
Frame Rate 25/30/50Hz Spectral Range 8μm To 14μm
Highlight

640×512 Thermal Camera Core

,

Manual Focus Thermal Camera Core
Leave a Message
Product Description
Thermal Camera Core with 384×288 Resolution with 8μm to 14μm Spectral Range
Product Overview

The COIN417G3 infrared camera core is equipped with a 384×288/17μm wafer-level infrared detector and enhanced by professional image processing algorithms, enabling fast and clear image output. It features ultra-low power consumption and full compatibility with industry-standard interfaces, making it highly versatile for applications such as industrial vision, night-time surveillance, outdoor observation, and AIoT. This camera core offers strong support for secondary development and system integration, accelerating the time-to-market of infrared imaging systems.

Key Features
  • Comprehensive Functionality, Cost-Effective Design - Developed using high cost-performance wafer-level packaging detector with integrated advanced image processing algorithms
  • Outstanding Performance, Superior Imaging - High sensitivity with typical NETD≤30mK and next-generation image algorithms for clearer, sharper thermal images
  • Flexible Extension, Rapid Integration - Multiple optical lens options, supports USB2.0/DVP/LVDS/BT.656 interfaces, outputs RAW/YUV image data with serial port control
Technical Specifications
Parameter Specification
Model COIN417G3
Sensitive Material VOx
Resolution 384×288
Pixel Size 17μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK/F1.0/25℃
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Image Processing Capabilities
  • Non-uniformity Correction (NUC)
  • 3D Noise Reduction (3DNR)
  • 2D Noise Suppression (DNS)
  • Dynamic Range Compression (DRC)
  • Edge Enhancement (EE)
Target Applications
Industrial Vision Security Monitoring Firefighting & Rescue Outdoors Machine Vision ADAS
Product Line Advantages
High Performance

High sensitivity and excellent performance with world-leading technology in infrared industry

Variety of Options

Various infrared detectors available including both uncooled and cooled IR detectors in different formats and pixel sizes

Volume Production

Three production lines with annual production capability up to millions of detectors ensuring fast delivery

Technical Support & Service

We provide excellent technical support for our thermal camera core product. Our engineers are available to provide guidance, answer questions, and provide troubleshooting assistance.

We offer a comprehensive warranty service covering any manufacturer defects during the warranty period, including free repair or replacement services for defective products.

If you have any questions about our Thermal Camera Core product or need technical assistance, please contact us. We are here to help.
